Drive Axle Shaft Assembly Set

Dorman - OE Solutions
630-052
$915.00 CAD
$915.00
Door Window Switch
Door Window Switch
$311.00
Brake Dust Shield
Brake Dust Shield
$376.00

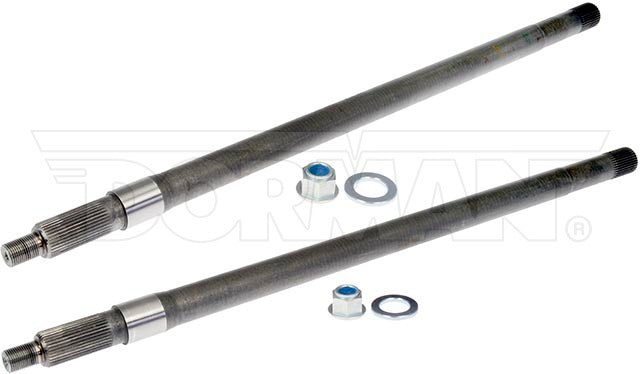

Drive Axle Shaft Assembly Set
Description
Rear Axle Shaft Assembly Kit
AXLE SHAFT ASSEMBLY KIT
Also available - if your repair requires only a right side assembly, select Dorman part number 630-050; for the left side assembly, select Dorman part number 630-051
Restores performance - designed for a straightforward repair that can prevent vehicle control issues and multiple dealership repair visits that can keep a customer's truck out of commission for days
Upgraded repair - this pair of patent-pending Dorman OE FIX axle assemblies eliminates the thin-walled internally-threaded axle shaft ends of the OE design and the failure-prone hub bolts
Position-specific - this kit contains one right rear axle assembly and one left rear axle assembly engineered and upgraded for selected 2021-2025 Ford F-150 trucks equipped with the Max Tow package
The bolts that secures the right and left rear hubs to the axle on certain 2021-2025 Ford F-150 trucks equipped with the Max Tow package have been known to shear off after day-to-day driving, a modest number of towing trips or ventures off-road. Failure symptoms include the sound of brakes that are dragging (a result of the brake rotor moving freely against the hub), a rattle caused by sheared bolt heads trapped inside the assembly and in extreme cases, severe changes in handling. The dealer solution is to replace axle assemblies with the same original equipment design, inviting a future similar failure. Our patent-pending Dorman OE FIX axle assembly eliminates the thin-walled internally-threaded axle end of the factory shaft design and the failure-prone bolt that connects it to the hub. The upgraded axle shaft features an externally-threaded male end and matching nut to capture the axle end, resulting in a more secure connection between the hub and the axle. The assembly is designed for a straightforward installation and a longer-lasting repair that can prevent potentially dangerous vehicle control issues and multiple dealership repair visits that can keep a customer vehicle out of commission for several days. This kit contains the axle shafts, spacers and nuts required to replace one left rear axle assembly and one right rear axle assembly. For only the right side assembly, select Dorman part number 630-050; for the left side assembly, select Dorman part number 630-051.
Read More
Read Less
Differential Case Design Type
Rear Differential
Length
929 mm
Outboard Spline Quantity
34
Package Contents
2 Axle Shafts
Wheel Studs Included
No
ABS Tone Ring Included
No
Brake Backing Plate Included
No
Brake Backing Plate Included
No
Brake Dust Shield Included
No
Brake Dust Shield Included
No
Hub Bearing Included
No
Shaft Diameter
39mm
Brake Hardware Included
Non
Hub Bearing Included
No
Material
Acero
Package Contents
2 Spacers
Rust Resistant Coating
No
Rust Resistant Coating
No
Shaft Material
Acero
Adjustable
Non
Axle Shaft Seal Included
Non
Shaft Diameter
39 mm
ABS Tone Ring Included
Non
Brake Dust Shield Included
Non
Grade Type
Regular
Material
Steel
Shaft Diameter
39 mm
Shaft Material
Steel
ABS Tone Ring Included
No
Adjustable
No
Adjustable
No
Brake Backing Plate Included
Non
Grade Type
Regular
Inboard Spline Quantity
35
Package Contents
2 Spindle Nuts
Shaft Length
929 mm
Wheel Studs Included
Non
Brake Hardware Included
No
Brake Hardware Included
No
Differential Case Design Type
Diferencial trasero
Hub Bearing Included
Non
Axle Shaft Seal Included
No
Axle Shaft Seal Included
No
Length
853 mm
Rust Resistant Coating
Non
Shaft Length
853 mm
Wheel Studs Included
No
