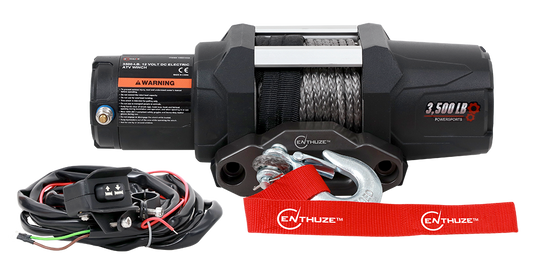

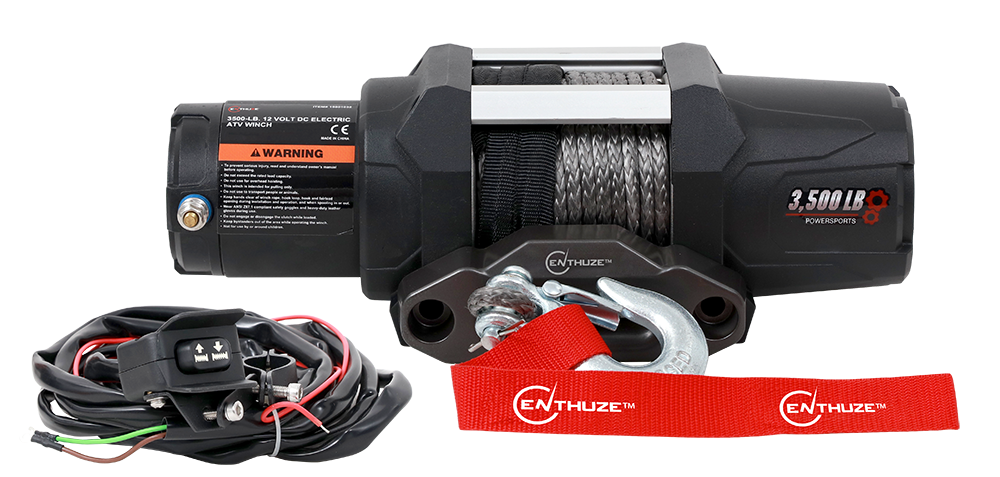

Enthuze 3500lb ATV/UTV Winch, Synthetic Rope
Three-stage planetary gear system provides fast line speed;Automatic load-holding brake keeps drum cool;2" drum for superior cable-surface contact;Equipped with premium stainless-steel hardware;Includes handlebar-mounted rocker switch
To prevent serious injury, read and understand the owner's manual before operating;Do not exceed the rated load capacity;This winch is intended for pulling only;Do not use to transport people or animals;Keep hands clear of winch rope, hook loop, hook and fairlead opening during installation and operation, and when spooling in our out.;Wear ANSI-approved safety goggles and heavy-duty leather work gloves during installation and use;Do not engage or disengage the clutch while loaded;Keep bystanders out of the area while operating the winch;Not for use by or around children
Rated Single Line Pull: 3500Ib (1587kg);Application: ATV / UTV;Motor: 12V DC 1.3 HP Permanent Magnet;Power in & Power Out: Yes;Duty Cycle Rating: 5% (45 seconds at Max Rated Load; 14 minutes, 15 seconds rest);Wired Remote Controller: Wired, 10ft (3.1m) long;Gear Train: 3-Stage Planetary;Gear Ratio: 167:1;Free Spool: Cam Activated;Brake: Auto. Load Holding Mechanical;Drum (Dia. X L): 2" X 5" (50mmx84mm);Hook: 1/4" Clevis, with Spring-Loaded Safety Latch;Fairlead: Aluminum Hawse Fairlead;Rope Size/Type: 0.216 " x 50’ (5.5mmx15.2m);Synthetic Rope;Battery: 12V DC Minimum 20 Ah;Battery Cables: 8 Gauge, 5.9' Long;Solenoid Cables: 8 Gauge, 4.2' Long;Mounting Pattern: 3’’x 4.9’’ (76mmx124mm);Mounting Hardware: Adaptor Plate: 4xM8x25mm, Fairlead: 2x M8x25mm, Relay:2x M5x20 mm;Sound Rating: 80db;Overall Dimensions (L X D X H): 13.3 " X 4.7" X 4.6"(337mmx120mmx118mm);Weight: 20.5 Ib. (9.3kg);IP Rating: IP 68 - Winch and Controls
The Enthuze 3,500lb 12V DC Electric ATV/UTV Winch features a 1.3 HP permanent magnet motor that stays cooler during long pulls. The three-stage planetary gear system provides fast line speed. The automatic load-holding brake ensures maximum safety. The free spooling provides a fast line-out, while the 10’ ergonomic handheld remote control allows for safe operation at a distance. The winch contains an Aluminum Hawse Fairlead and an aircraft-grade Synthetic rope.
