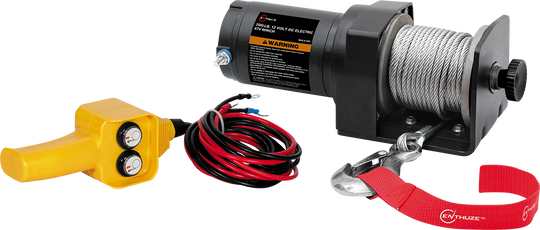

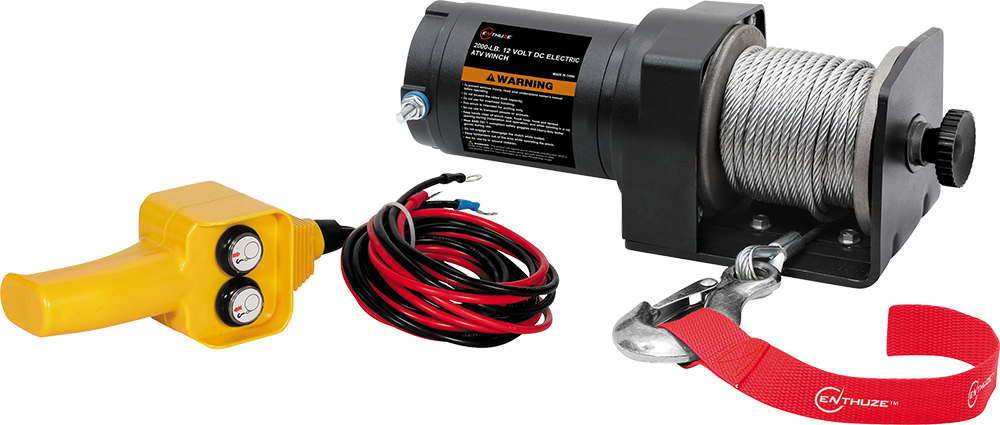

Enthuze 2000 lb Winch, Steel Rope
Permanent magnet motor draws less current;Freespool for faster rigging and vehicle recover;Automatic load-holding brake for maximum safety;Includes 50' x 5/32in. Galvanized Aircraft Wire Rope;Includes wired handheld remote control;Included mounting brackets and hardware;Colour coded wires for easy installation
Rated Single Line Pull: 2,000lb (907kg);Application: Utility/Shop/ATV;Motor: 12V DC 1.1 HP Permanent Magnet;Power In & Power Out: Yes;Duty Cycle Rating: 5% (45 Seconds at Max Rated Load; 14 minutes, 15 seconds rest);Wired Remote Controller: Wired, 10ft (3.04m) Long;Gear Train: Differential Planetary;Gear Ratio153:1;Free Spool: Pull and Turn;Brake: Automatic Load Holding Dynamic;Drum Diameter: 1.24" X 2.83" (31.5mm x 72 mm) ;Hook: 1/4" Clevis, with Spring-Loaded Safety Latch;Fairlead: Roller with Nylon Bushings;Wire Rope Size /Type: 5/32" x 50' (4.0mmX15.2m);7X19 Galvanized Steel;Aircraft-Grade Wire Rope;Battery: 12V DC Minimum 12Ah;Battery Cables: 10 Gauge,6' (1.83m) long;Motor Cables: 10 Gauge, 4' (1.23m) long;Mounting Bolt Pattern: 3.15’’ (80mm);Mounting Hardware: Winch: 2xG8, M8-1.25X35mm (0.05” X 1.38’’ ) ;Overload Protection: In-line Circuit Breaker;Sound Rating: 85 db;Overall Dimensions (L X D X H) : 11.1"×4.6"×4.2” (282mm×117mm×106mm) ;Weight: 13.2lb (5.98 kg);IP Rating: IP 65 - Winch and Controls (resistant to water jets)
To prevent serious injury, read and understand the owner's manual before operating;Do not exceed the rated load capacity;This winch is intended for pulling only;Do not use to transport people or animals;Keep hands clear of winch rope, hook loop, hook and fairlead opening during installation and operation, and when spooling in our out.;Wear ANSI-approved safety goggles and heavy-duty leather work gloves during installation and use;Do not engage or disengage the clutch while loaded;Keep bystanders out of the area while operating the winch;Not for use by or around children
The Enthuze 2000-Lb. 12 Volt DC Electric ATV Winch has a permanent magnet motor which draws less current, making it ideal for ATV use. The Differential Planetary gear system allows for fast line speed while the automatic load-holding brake provides maximum safety. It has free spooling for a fast line-out, a roller fairlead with nylon bushings and an aircraft-grade wire rope.
