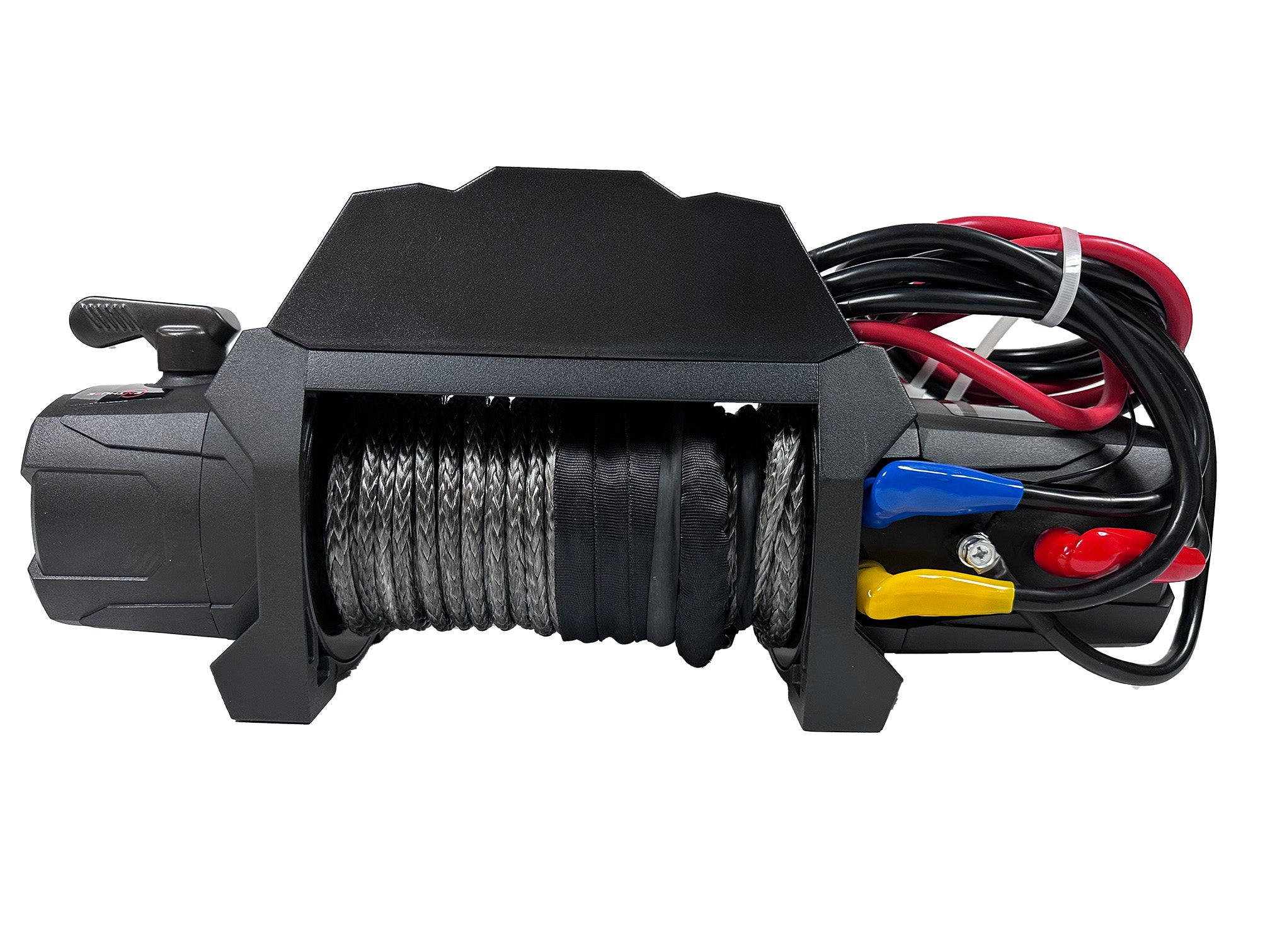

Enthuze 12000 lb Winch, Synthetic Rope

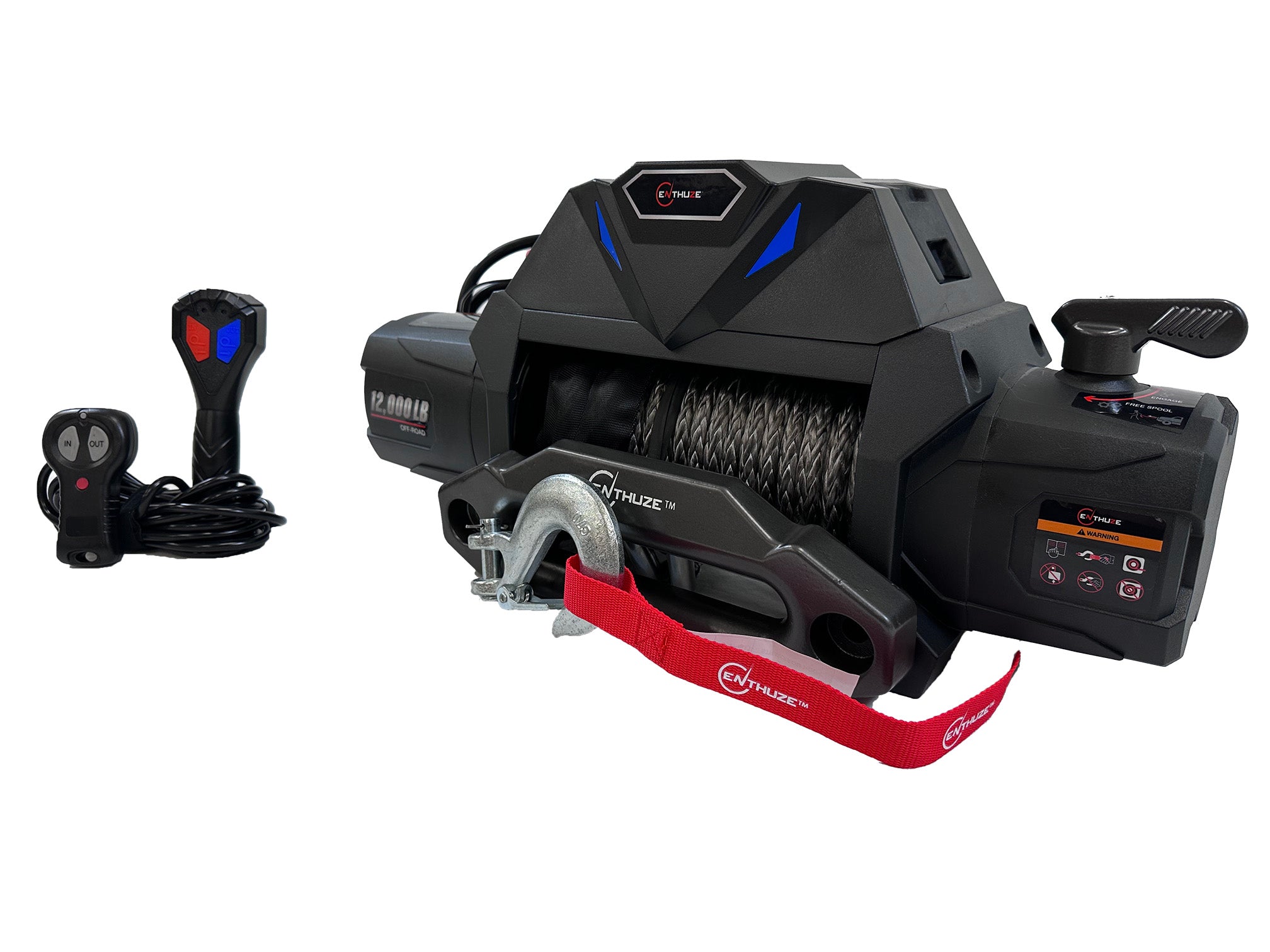

Includes wired and wireless remote controls;7HP series-wound motor stays cooler during long pulls;Three-stage planetary gear system provides fast line speed;Revolutionary automatic brake system keeps drum and motor cool;Equipped with premium stainless-steel hardware;2.75" drum for superior cable-surface contact;Includes82' synthetic rope and hook
Rated Single Line Pull: 12,000Ib (5443kg.);Application: Vehicle Recovery / For Trucks and SUVs;Motor: 12V DC 7.0 HP Series Wound;Power In & Power Out: Yes;Duty Cycle Rating: 5% (45 seconds at Max Rated Load: 14 minutes, 15 seconds rest);Wired Remote Controller: Wired, 12’ (3.7m) Long;Wireless Remote: Yes;Gear Train: 3-stage Planetary;Gear Ratio: 232:1;Free spool: Locking Ring Gear;Brake: Auto Load Holding;Drum (Dia. XL): 2.75" x 8.8" (70mm x 224mm);Clevis Hook: 3/8”, Replaceable with Spring-Loaded Safety Latch;Fairlead: Hawse Fairlead;Rope Size/Type: 0.375" x 82’ (9.5mm x 25m);Synthetic Rope;Battery: 12V DC Minimum 650 CCA;Battery Cables: Min. 3.5 Gauge;Mounting Bolt Pattern: 10’’x 4.5’’ (254mm x 114.3mm);Mounting Hardware: Winch: 4×G8, M10-1.50×30mm, Fairlead: 2×G8, M12-1.75×25mm;Overload Protection: Built in with remote;Sound Rating: 85db;Overall Dimensions (LXDXH): 21.3" X 6.5" X 9.76” (540mm X164mm X248mm);Weight: 60lb (27.37 kg);IP Rating: IP68 on winch and wired remote control. IP65 on wireless remote control.
To prevent serious injury, read and understand the owner's manual before operating;Do not exceed the rated load capacity;This winch is intended for pulling only;Do not use to transport people or animals;Keep hands clear of winch rope, hook loop, hook and fairlead opening during installation and operation, and when spooling in our out.;Wear ANSI-approved safety goggles and heavy-duty leather work gloves during installation and use;Do not engage or disengage the clutch while loaded;Keep bystanders out of the area while operating the winch;Not for use by or around children

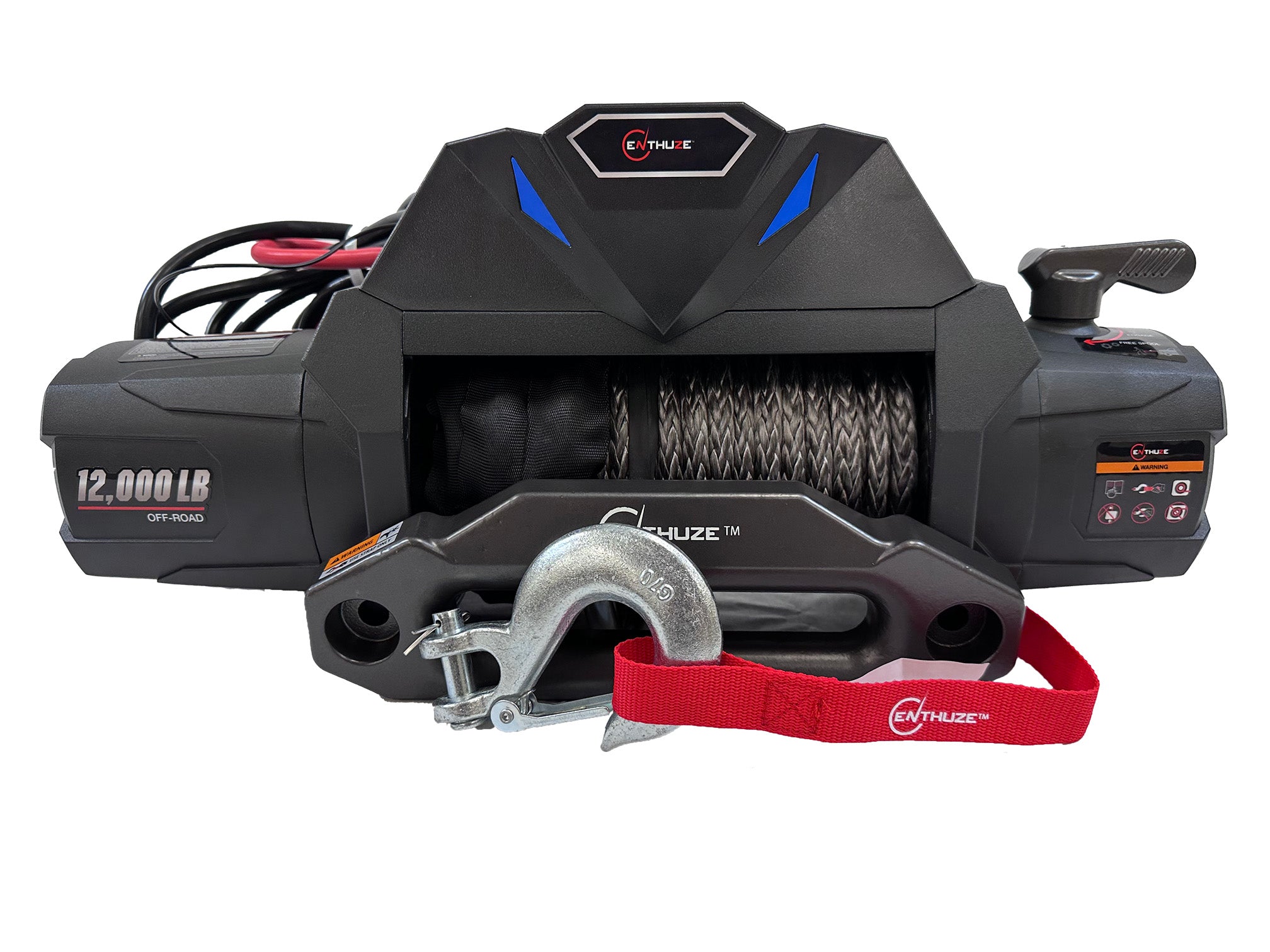

The Enthuze 12,000LB 12V DC Electric Vehicle Winch includes a series-wound motor that stays cooler during long pulls. The three-stage planetary gear system provides fast line speed, while the automatic load-holding brake ensures maximum safety. The free-spooling design provides a fast line out. The winch contains a Hawse fairlead and a synthetic rope.
