Enthuze 4500lb ATV/UTV Winch, Steel Rope
Rated Single Line Pull: 4500Ib (2041kg);Application: ATV / UTV;Motor: 12V DC 1.4 HP Permanent Magnet;Power in & Power Out: Yes;Duty Cycle Rating: 5% (45 seconds at Max Rated Load; 14 minutes, 15 seconds rest);Wired Remote Controller: Wired, 12ft (3.7m) long;Gear Train: 3-Stage Planetary;Gear Ratio: 201:1;Free Spool: Cam Activated;Brake: Auto. Load Holding Mechanical;Drum (Dia. X L): 2" X 5" (50mmx127mm);Hook: 5/16" Clevis, with Spring-Loaded Safety Latch;Fairlead: 4-Way Roller;Rope Size/Type: 0.236" x 50’ (6.0mm x 15.2m), : 7X19W Galvanized Steel, : Aircraft-Grade Wire Rope;Battery: 12V DC Minimum 20 Ah;Battery Cables: 8 Gauge, 7.7' (2.35m) Long;Solenoid Cables: 8 Gauge, 2.9' (0.85m) Long;Mounting Pattern: 3’’x 6.6’’ (76mmx167mm);Mounting Hardware: Adaptor Plate: 4xM8x25mm ;: Fairlead: 2x M8x25mm;: Relay:2x M5x20 mm;Sound Rating: 80db;Overall Dimensions (L X D X H): 15 "X4.7"X4.6"(380mmx120mmx118mm);Weight: 27.1 Ib. (14.2kg);IP Rating: IP 68 - Winch and Controls
1.4 HP permanent magnet motor;Three-stage planetary gear system provides fast line speed;Automatic load-holding brake keeps drum cool;2" drum for superior cable-surface contact;Equipped with premium stainless-steel hardware;IP68 waterproof design keeps elements out;Includes wired remote control
To prevent serious injury, read and understand the owner's manual before operating;Do not exceed the rated load capacity;This winch is intended for pulling only;Do not use to transport people or animals;Keep hands clear of winch rope, hook loop, hook and fairlead opening during installation and operation, and when spooling in our out.;Wear ANSI-approved safety goggles and heavy-duty leather work gloves during installation and use;Do not engage or disengage the clutch while loaded;Keep bystanders out of the area while operating the winch;Not for use by or around children

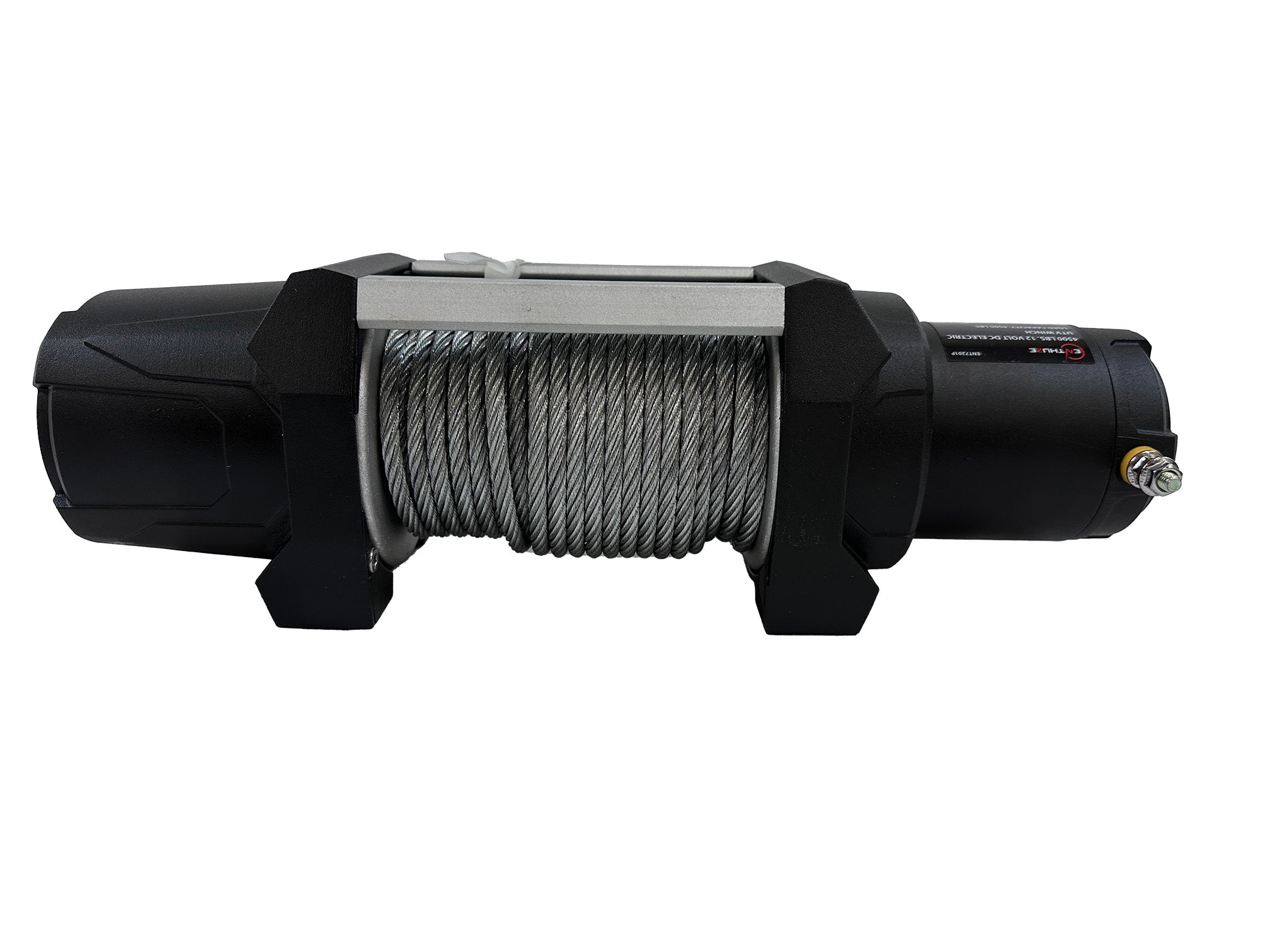

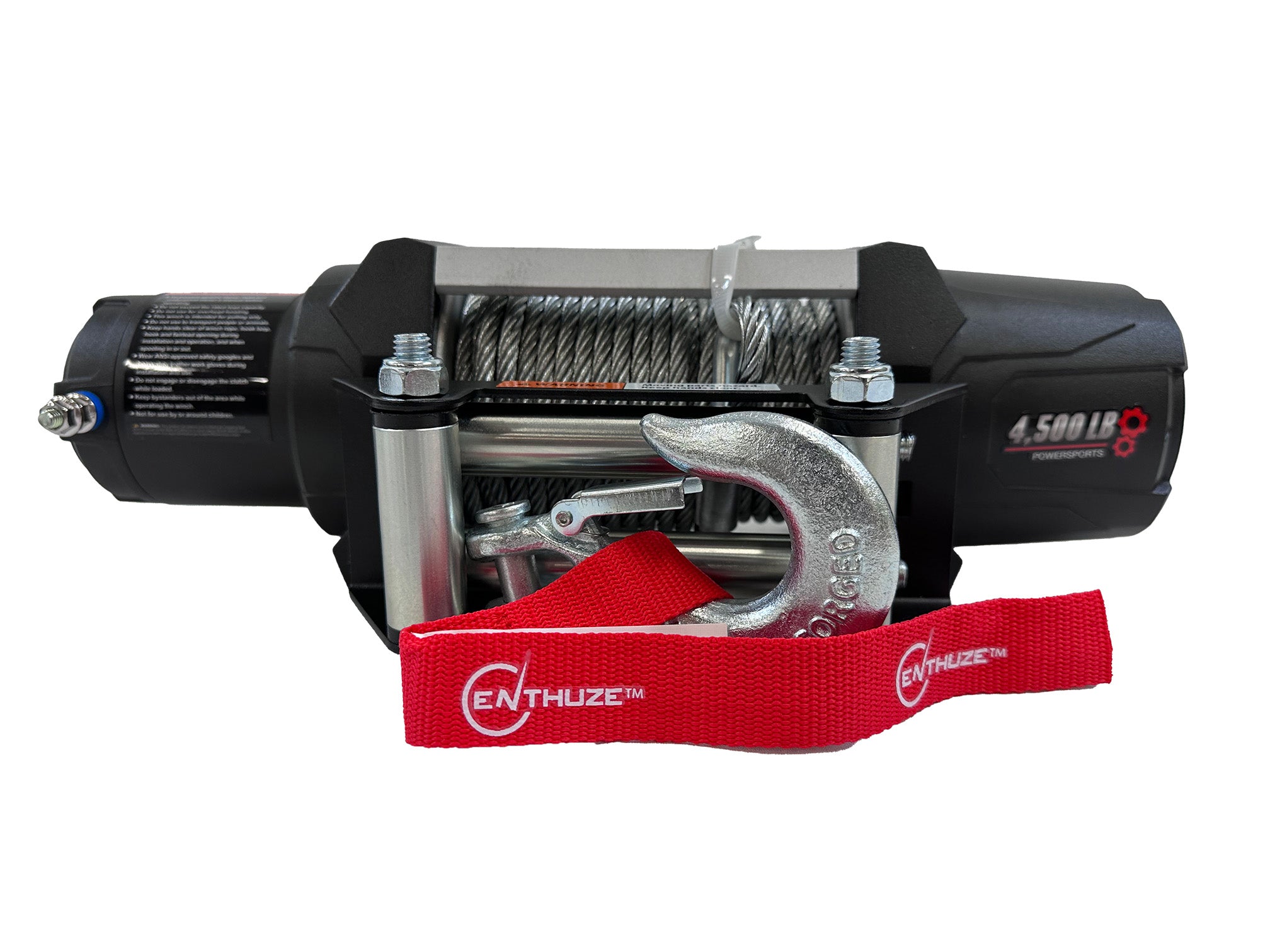

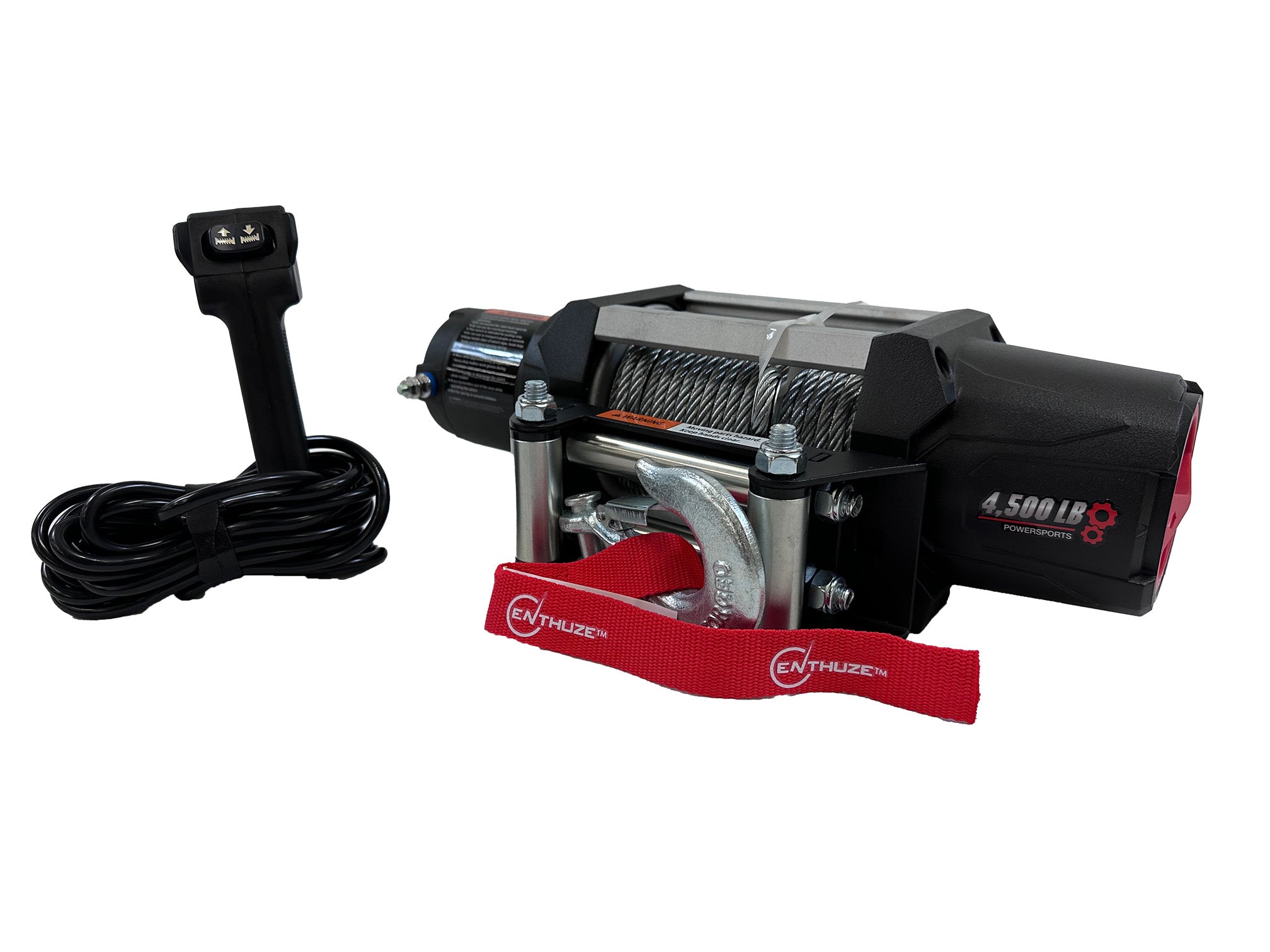

The Enthuze 4,500lb 12V DC Electric ATV/UTV Winch features a 1.4 HP permanent magnet motor that stays cooler during long pulls. The three-stage planetary gear system provides fast line speed. The automatic load-holding brake ensures maximum safety. The free spooling provides a fast line-out, while the 12’ ergonomic handheld remote control allows for safe operation at a distance. The winch contains a 4-way roller fairlead and an aircraft-grade wire rope.
