550062 Magnum Light Truck Shock Absorber BCZC
Click to zoom in

Have Questions?

  • 100% Fitment Guarantee

    Use Our Fitment Confirmation Tool For Fitment Verification

  • auto parts experts

    We Know Our Auto Parts, Tires and Wheels

  • Fast Same Day Shipping

    Review Timeline For Fast Delivery. Most Orders Ships Same Day

  • Customer SatisFaction

    Customer Satisfaction Is Our #1 Priority

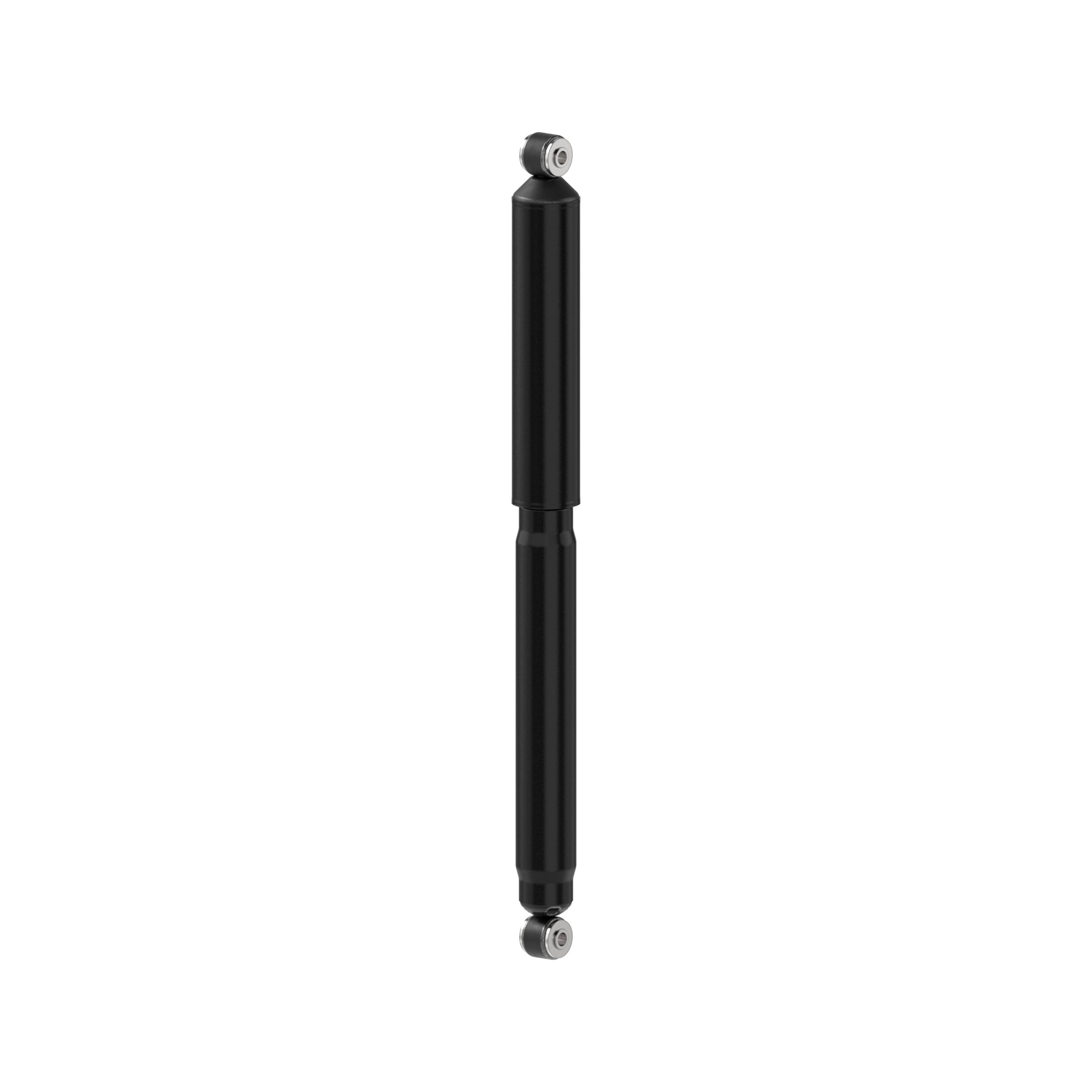

Magnum Light Truck Shock Absorber

Monroe
550062
$145.00 CAD
$145.00

Magnum Light Truck Shock Absorber
Magnum Light Truck Rear Suspension Shock Absorber
Monroe Magnum Light Truck 550062 Rear Suspension Shock Absorber for Ford F-150
PTFE coated bearing: Reduces friction during operation between the rod and rod guide, improving durability - on most applications
1-3/8-inch (35 mm) bore: Larger bore than most shocks to provide more efficient and consistent control - on most applications
10-stage valving: Reacts to wide range of driving conditions - on most applications
.05-inch pressure tube withstanding pressure of 9KPSI - On most applications
5/8-inch (16 mm) diameter piston rod: Nitrocarburized design more environmentally friendly, maintaining chrome structural benefits, without affecting durability. Sintered iron design allows for more precise piston dimensions.
Robust hydraulic lock-out: Prevents over-extension of the suspension, top-out of the piston and averts damage to the seal assembly - on most applications
Tenneco shouldered bushings: Shouldered bushing and bonded bushing with sleeve designs prevent (bushing walkout) for improved quality and durability - on most applications
2-inch (50.8 mm) reserve tube: More fluid for more consistent performance - on most applications
Loop welding technique: Provide up to 14,100 lbs. (6,395 kg) tensile strength for maximum durability
Nitrogen gas-charged: For improved ride and handling, helps maintain tire to road contact by reducing aeration
Severe Service™ Ride Control products are engineered for emergency, municipal fleet and construction uses. These gas-charged, extra-durable Monroe® shock absorbers feature strengthened components for superior stability and ride control in the toughest applications. Durable Severe Service™ shock absorbers have a larger bore for greater working capacity and arc-welded mounts for higher tensile strength.
Read More
Read Less
Part Description
Shock Absorber
Includes Bump Stop
No
Compressed Length
451.1
Internal Rebound Bumper
Yes
Shock Absorber Rod End Measuring Point
Center of Loop
Travel Length
303.8
Shock Absorber Body End Measuring Point
Center of Loop
Body Diameter
57.2
Parts Pack(s)
None
Upper Mount Code
LS27
Lower Mount Code
LS27
Compressed Length
17.76
Extended Length
747.8
Lower Mount Type
Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.9/16\ Sleeve OAL
Upper Mount Type
Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 39.69MM Sleeve OAL
Gas Charged
Yes
Extended Length
29.44
Hydraulic Lockout
No
Travel Length
11.96
Body Diameter
2.251
Dust Shield Included
Yes
Customer satisfaction is our number 1 priority. If there is any questions that the FAQ cannot answer please contact us via Live Chat, 1-866-461-2787 or Email Us Here always guarantee the fitment of all our auto parts, tires & wheels. Our catalog is maintained daily to ensure you get the right auto parts, tires and wheels the first time!

Please review the available inventory for a basic idea of when the order will ship. The order cutoff for same-day shipping is 12 Noon. Any orders placed after will ship the next day.

Shipping is mostly free. However, in some rare circumstances, we reserve the right to charge additional freight or cancel the order. This is due to rural areas and/or oversized products

Review the complete freight policy by clicking here

Many times we can still source products. However, it may come with extra freight or fees. Simply contact us via live chat or our Contact Us page here.


Our team will be happy to help!

Our team is very accurate in our picking process. We follow multiple verifications to ensure the right part that was ordered is shipped.

Yes, we do. We have a year, make and model verification. Now with the application, there are sometimes some important notes to read about fitments. For 100% confirmation contact us

Absolutely! You can pick up your Auto Parts, Tires, and Wheels at our Ottawa Location. In order to do that please select the pickup in-store option at the checkout. Our team will reach out to you when your parts are ready for pickup. Normally a day turnaround on all available products.

If you want a more precise pickup time, We are easily reached by Live Chat, 1-866-461-2787 or by Email

Our default price is in Canadian dollars

All of our orders can be canceled prior to shipping. Special orders cannot be canceled once we have confirmed the lead times with our clients. All tire and wheel packages cannot be canceled once mounted & balanced. We do ship out pretty quickly. In order to cancel your order please contact us immediately to cancel. The easiest way is to reply to your order confirmation.

Return freight will be charged for the return

Special order items might be refused for return

Warranties vary by manufacturer. Please contact us for confirmation of warranty on parts

Brand Label Part Number
KYB 554373
NAPA Shocks 911302
Sensen 12140169
PRT 173932
Sachs 316580
NAPA Shocks 94379
Ford 9L3Z18125D
Ford AL3Z18125E
Ford AL3Z18125H
Ford AL3Z18125K
FCS DT342887
Rancho RS55384
KYB 349108
Ford 9L3Z18125F
Ford AL3Z18125L
Ford BL3Z18125F
Top Quality 78911302
Ford 9L3Z18125E
Ford AL3Z18125G
Gabriel G64079
Rancho RS5384
AutoZone TS3432232B
