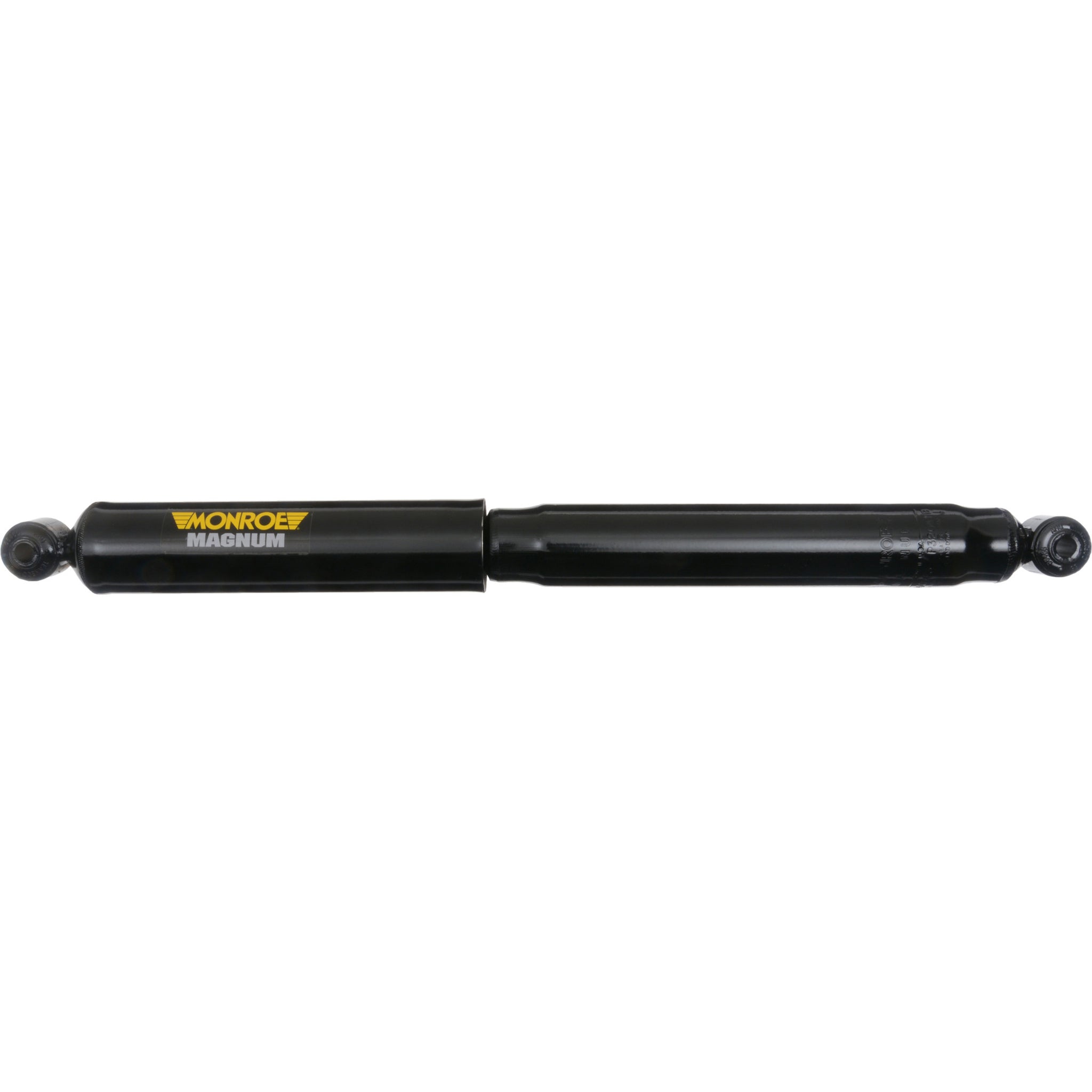

550063 Magnum Light Truck Shock Absorber BCZC
Click to zoom in
Load image into Gallery viewer, 550063 Magnum Light Truck Shock Absorber BCZC

Have Questions?

1-866-461-2787

  • 100% Fitment Guarantee

    Use Our Fitment Confirmation Tool For Fitment Verification

  • auto parts experts

    We Know Our Auto Parts, Tires and Wheels

  • Fast Same Day Shipping

    Review Timeline For Fast Delivery. Most Orders Ships Same Day

  • Customer SatisFaction

    Customer Satisfaction Is Our #1 Priority

Magnum Light Truck Shock Absorber

Monroe
550063
$131.00 CAD
$131.00
Magnum Light Truck Shock Absorber
Description
Magnum Light Truck Rear Suspension Shock Absorber
Monroe Magnum Light Truck 550063 Rear Suspension Shock Absorber for Ford F-150
1-3/8-inch (35 mm) bore: Larger bore than most shocks to provide more efficient and consistent control - on most applications
10-stage valving: Reacts to wide range of driving conditions - on most applications
.05-inch pressure tube withstanding pressure of 9KPSI - On most applications
2-inch (50.8 mm) reserve tube: More fluid for more consistent performance - on most applications
PTFE coated bearing: Reduces friction during operation between the rod and rod guide, improving durability - on most applications
Robust hydraulic lock-out: Prevents over-extension of the suspension, top-out of the piston and averts damage to the seal assembly - on most applications
5/8-inch (16 mm) diameter piston rod: Nitrocarburized design more environmentally friendly, maintaining chrome structural benefits, without affecting durability. Sintered iron design allows for more precise piston dimensions.
Tenneco shouldered bushings: Shouldered bushing and bonded bushing with sleeve designs prevent (bushing walkout) for improved quality and durability - on most applications
Loop welding technique: Provide up to 14,100 lbs. (6,395 kg) tensile strength for maximum durability
Nitrogen gas-charged: For improved ride and handling, helps maintain tire to road contact by reducing aeration
Severe Service™ Ride Control products are engineered for emergency, municipal fleet and construction uses. These gas-charged, extra-durable Monroe® shock absorbers feature strengthened components for superior stability and ride control in the toughest applications. Durable Severe Service™ shock absorbers have a larger bore for greater working capacity and arc-welded mounts for higher tensile strength.
Read More
Read Less
Includes Bump Stop
No
Internal Rebound Bumper
Yes
Shock Absorber Rod End Measuring Point
Center of Loop
Travel Length
10.65
Travel Length
270.5
Shock Absorber Body End Measuring Point
Center of Loop
Body Diameter
57.2
Part Description
Shock Absorber
Dust Shield Included
Yes
Compressed Length
16.54
Hydraulic Lockout
No
Lower Mount Type
Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.9/16\ Sleeve OAL
Upper Mount Type
Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 39.69MM Sleeve OAL
Gas Charged
Yes
Extended Length
27.19
Extended Length
690.6
Body Diameter
2.251
Parts Pack(s)
None
Upper Mount Code
LS27
Lower Mount Code
LS27
Compressed Length
420.1
Customer satisfaction is our number 1 priority. If there is any questions that the FAQ cannot answer please contact us via Live Chat, 1-866-461-2787 or Email Us Here always guarantee the fitment of all our auto parts, tires & wheels. Our catalog is maintained daily to ensure you get the right auto parts, tires and wheels the first time!

Please review the available inventory for a basic idea of when the order will ship. The order cutoff for same-day shipping is 12 Noon. Any orders placed after will ship the next day.

Shipping is mostly free. However, in some rare circumstances, we reserve the right to charge additional freight or cancel the order. This is due to rural areas and/or oversized products

Review the complete freight policy by clicking here

Many times we can still source products. However, it may come with extra freight or fees. Simply contact us via live chat or our Contact Us page here.


Our team will be happy to help!

Our team is very accurate in our picking process. We follow multiple verifications to ensure the right part that was ordered is shipped.

Yes, we do. We have a year, make and model verification. Now with the application, there are sometimes some important notes to read about fitments. For 100% confirmation contact us

Absolutely! You can pick up your Auto Parts, Tires, and Wheels at our Ottawa Location. In order to do that please select the pickup in-store option at the checkout. Our team will reach out to you when your parts are ready for pickup. Normally a day turnaround on all available products.

If you want a more precise pickup time, We are easily reached by Live Chat, 1-866-461-2787 or by Email

Our default price is in Canadian dollars

All of our orders can be canceled prior to shipping. Special orders cannot be canceled once we have confirmed the lead times with our clients. All tire and wheel packages cannot be canceled once mounted & balanced. We do ship out pretty quickly. In order to cancel your order please contact us immediately to cancel. The easiest way is to reply to your order confirmation.

Return freight will be charged for the return

Special order items might be refused for return

Warranties vary by manufacturer. Please contact us for confirmation of warranty on parts

Brand Label Part Number
Unity Automotive 252110
KYB 344415
AL-KO Xtreme 813025
Gabriel G63867
Gabriel G64157
AutoZone TS3331812B
Sensen 12140166
FCS 342508
NAPA Shocks 550063
Rancho RS5286
KYB KG5192
Rancho RS55286
