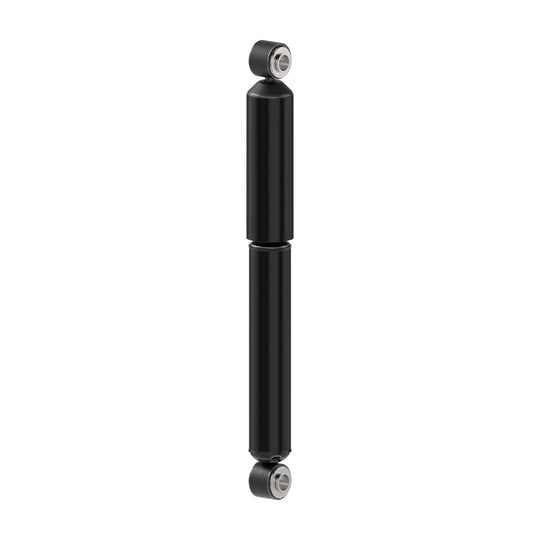

66636 Magnum Shock Absorber BCZC
Click to zoom in

Have Questions?

  • 100% Fitment Guarantee

    Use Our Fitment Confirmation Tool For Fitment Verification

  • auto parts experts

    We Know Our Auto Parts, Tires and Wheels

  • Fast Same Day Shipping

    Review Timeline For Fast Delivery. Most Orders Ships Same Day

  • Customer SatisFaction

    Customer Satisfaction Is Our #1 Priority

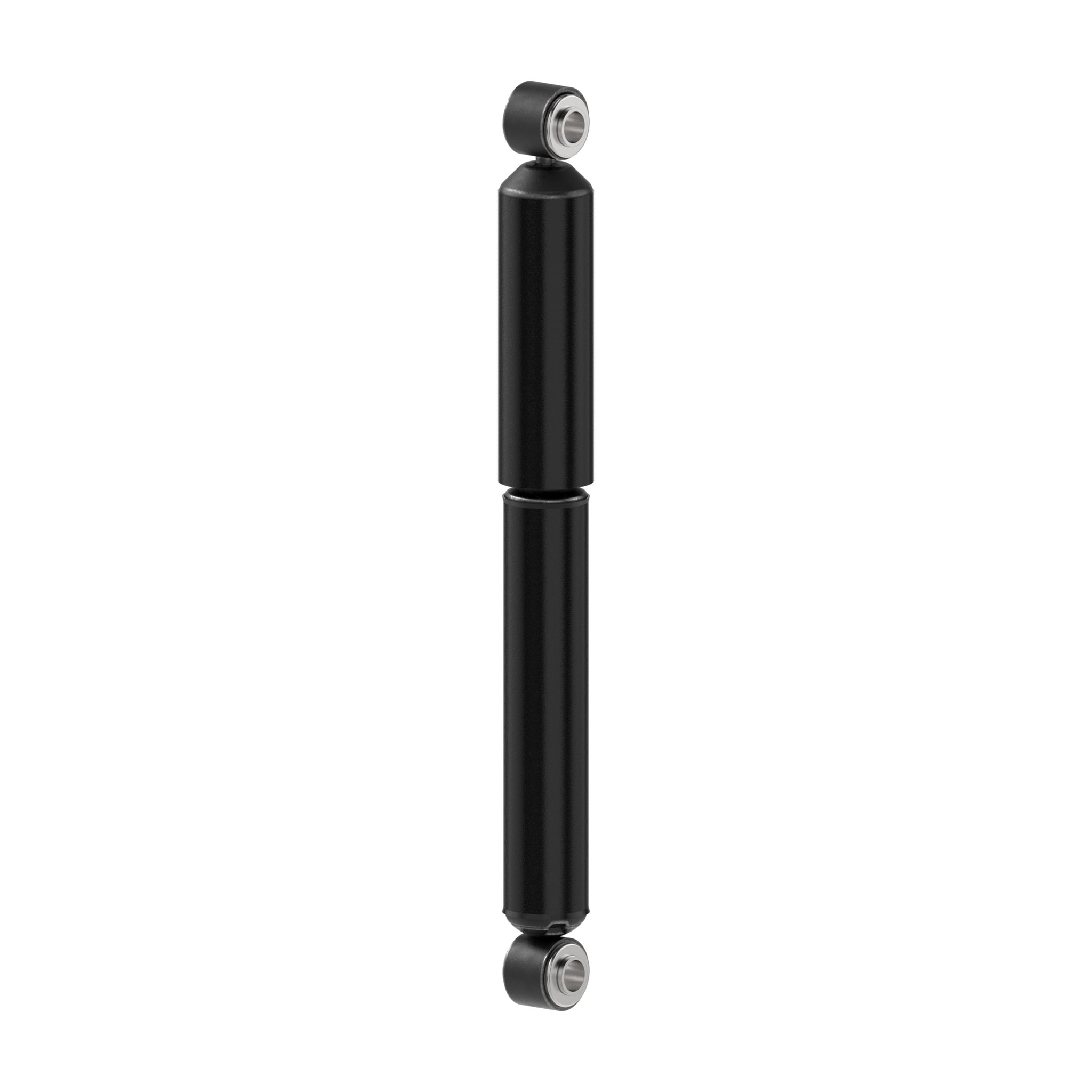

Magnum Shock Absorber

Monroe
66636
$93.00 CAD
$93.00

Magnum Shock Absorber
Magnum Tag Axle; Front; Rear Suspension Shock Absorber
Monroe Magnum 66636 Tag Axle; Front; Rear Suspension Shock Absorber for GMC G3500
BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (on most applications)
BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while 2-in. or 2-1/4-in. reserve tube holds more fluid to improve performance (when required)
REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration, and harshness under most driving conditions
EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/8-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
FOR HARDWORKING COMMERCIAL VEHICLES   -- Designed to handle the demands of high mileage and severe use class 3-6 trucks and buses
LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
The Monroe® Magnum® shock absorber for class 3-6 vehicles is gas-charged for quicker response and a stable, more comfortable ride. Designed to handle the demands of high mileage and severe use vehicles, replace worn-out units with Magnum® shocks to help reduce excessive vibration.
Read More
Read Less
Dust Shield Included
Yes
Includes Bump Stop
No
Extended Length
20.4531
Shock Absorber Rod End Measuring Point
Center of Loop
Dust Shield Material
Metal
Shock Absorber Body End Measuring Point
Center of Loop
Finish
Painted
Internal Construction Type
Twin Tube
Foam Cell Design
No
Part Description
Shock Absorber
Shaft Diameter
16
Upper Mount Code
LS54
Lower Mount Code
LS54
Compressed Length
341.3
Hydraulic Lockout
Yes
Travel Length
7.015
Gas Charged
Yes
Travel Length
178.2
Color
Black
Adjustable Damping
No
Lower Mount Type
Loop Bushing and Sleeve Mount - 3/4\ Sleeve ID X 1.3/4\ Sleeve OAL
Parts Pack(s)
None
Upper Mount Type
Loop Bushing and Sleeve Mount - 3/4\ Sleeve ID X 1.3/4\ Sleeve OAL
Compressed Length
13.4375
Shock Absorber Bore Size
35
Extended Length
519.5
Internal Rebound Bumper
No
Customer satisfaction is our number 1 priority. If there is any questions that the FAQ cannot answer please contact us via Live Chat, 1-866-461-2787 or Email Us Here always guarantee the fitment of all our auto parts, tires & wheels. Our catalog is maintained daily to ensure you get the right auto parts, tires and wheels the first time!

Please review the available inventory for a basic idea of when the order will ship. The order cutoff for same-day shipping is 12 Noon. Any orders placed after will ship the next day.

Shipping is mostly free. However, in some rare circumstances, we reserve the right to charge additional freight or cancel the order. This is due to rural areas and/or oversized products

Review the complete freight policy by clicking here

Many times we can still source products. However, it may come with extra freight or fees. Simply contact us via live chat or our Contact Us page here.


Our team will be happy to help!

Our team is very accurate in our picking process. We follow multiple verifications to ensure the right part that was ordered is shipped.

Yes, we do. We have a year, make and model verification. Now with the application, there are sometimes some important notes to read about fitments. For 100% confirmation contact us

Absolutely! You can pick up your Auto Parts, Tires, and Wheels at our Ottawa Location. In order to do that please select the pickup in-store option at the checkout. Our team will reach out to you when your parts are ready for pickup. Normally a day turnaround on all available products.

If you want a more precise pickup time, We are easily reached by Live Chat, 1-866-461-2787 or by Email

Our default price is in Canadian dollars

All of our orders can be canceled prior to shipping. Special orders cannot be canceled once we have confirmed the lead times with our clients. All tire and wheel packages cannot be canceled once mounted & balanced. We do ship out pretty quickly. In order to cancel your order please contact us immediately to cancel. The easiest way is to reply to your order confirmation.

Return freight will be charged for the return

Special order items might be refused for return

Warranties vary by manufacturer. Please contact us for confirmation of warranty on parts

Brand Label Part Number
Watson & Chalin 10148
Freightliner 1398980
General Motors 3171459
Western Star 359014403
Volvo GM Heavy Truck 3919915
Trailmobile 434279
General Motors 4940610
General Motors 5521698
General Motors 5521699
Neway 57365433
Neway 57366636
Monroe Shocks & Struts 601130
Chalmers Suspension 665174
Hendrickson 665267
NAPA Shocks 66636
Gabriel 680570
Gabriel 89437
Neway 90044083
Neway 90044642
Alliance Truck Parts ABPN32G900083
Navistar AMS660130
Euclid E85029
Meritor M83127
Hendrickson S2212
Hendrickson S23316
Monroe Shocks & Struts 16335
PRT HD 170133
General Motors 3197642
Dayton Parts 44183127
ACDelco 50827
Thomas Built Buses 61300114
Monroe Shocks & Struts 661130
Paccar Parts 665174
Ridewell Corp 665267
Gabriel 665495
Gabriel 728620
Gabriel 728631
Gold Shock Absorber 8150371
Gabriel 83127
Gabriel 85910
Neway 90044017
Alliance Truck Parts ABPN32O900083
Navistar AMS600130
FCS F347328
Nuturn/leland L57661
Stoughton Trailers NW90044979
Volvo GM Heavy Truck RCSA3127
Volvo GM Heavy Truck SA3127
Batco 1083206
Volvo Truck 1091349
KYB 345608
Navistar 537524C91
Duplex 59024
Mack 650433MT
Mack 660130MT
Gabriel 665109
Gabriel 665265
Monroe Shocks & Struts 6877
Gabriel 85326
Neway 90044681
Freightliner 90045083
Navistar AMS650433
Hendrickson B23316
Batco 1083204
Reyco Granning 2096001
Monroe Shocks & Struts 3043
General Motors 3166287
General Motors 3178165
Sachs 317964
Navistar 3516764C1
Trailmobile 434236
Trailmobile 438031
Neway 57306895
Dura Suspension 59024
Mack 600130MT
Monroe Shocks & Struts 6026
Gabriel 727604
Mack 78530771
Gabriel 83113
Gabriel 83204
Neway 90044689
Neway 90044915
Blue Bird 90044915
Neway 90044983
Neway AR1141
Neway AR1141C
Euclid E83204
Euclid E85008
FCS F347203
Nuturn/leland L57649
Nuturn/leland L59030
