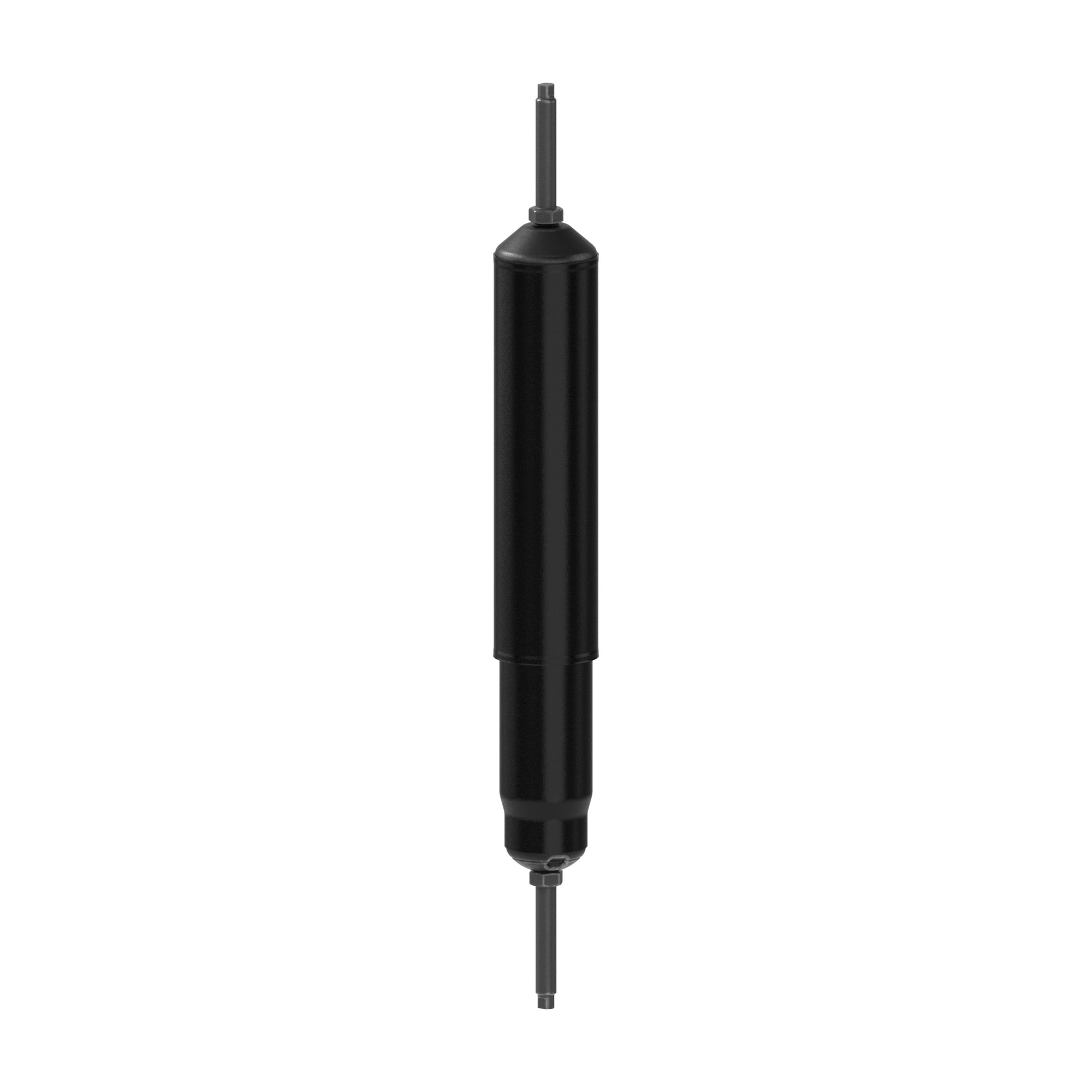

Magnum Shock Absorber

Monroe
66923
$98.00 CAD
$98.00

Magnum Shock Absorber
Magnum Front; Rear Suspension Shock Absorber
Monroe Magnum 66923 Front; Rear Suspension Shock Absorber
BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (on most applications)
LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration, and harshness under most driving conditions
BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while 2-in. or 2-1/4-in. reserve tube holds more fluid to improve performance (when required)
EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/8-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
FOR HARDWORKING COMMERCIAL VEHICLES   -- Designed to handle the demands of high mileage and severe use class 3-6 trucks and buses
STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
The Monroe® Magnum® shock absorber for class 3-6 vehicles is gas-charged for quicker response and a stable, more comfortable ride. Designed to handle the demands of high mileage and severe use vehicles, replace worn-out units with Magnum® shocks to help reduce excessive vibration.
Read More
Read Less
Foam Cell Design
No
Part Description
Shock Absorber
Includes Bump Stop
No
Shock Absorber Rod End Measuring Point
Base of Stem
Dust Shield Material
Metal
Travel Length
10.125
Finish
Painted
Internal Construction Type
Twin Tube
Lower Mount Type
Stem Mount - 2.5/8\ Stem Length X 1/2\-13 Thread Pitch
Shaft Diameter
16
Upper Mount Type
Stem Mount - 2.5/8\ Stem Length X 1/2\-13 Thread Pitch
Dust Shield Included
Yes
Upper Mount Code
S5
Lower Mount Code
S5
Compressed Length
14
Compressed Length
355.6
Extended Length
24.125
Gas Charged
Yes
Shock Absorber Bore Size
35
Extended Length
612.8
Internal Rebound Bumper
No
Hydraulic Lockout
No
Adjustable Damping
No
Parts Pack(s)
(2) P01303
Travel Length
257.2
Shock Absorber Body End Measuring Point
Base of Stem
Color
Black
Customer satisfaction is our number 1 priority. If there is any questions that the FAQ cannot answer please contact us via Live Chat, 1-866-461-2787 or Email Us Here always guarantee the fitment of all our auto parts, tires & wheels. Our catalog is maintained daily to ensure you get the right auto parts, tires and wheels the first time!

Please review the available inventory for a basic idea of when the order will ship. The order cutoff for same-day shipping is 12 Noon. Any orders placed after will ship the next day.

Shipping is mostly free. However, in some rare circumstances, we reserve the right to charge additional freight or cancel the order. This is due to rural areas and/or oversized products

Review the complete freight policy by clicking here

Many times we can still source products. However, it may come with extra freight or fees. Simply contact us via live chat or our Contact Us page here.


Our team will be happy to help!

Our team is very accurate in our picking process. We follow multiple verifications to ensure the right part that was ordered is shipped.

Yes, we do. We have a year, make and model verification. Now with the application, there are sometimes some important notes to read about fitments. For 100% confirmation contact us

Absolutely! You can pick up your Auto Parts, Tires, and Wheels at our Ottawa Location. In order to do that please select the pickup in-store option at the checkout. Our team will reach out to you when your parts are ready for pickup. Normally a day turnaround on all available products.

If you want a more precise pickup time, We are easily reached by Live Chat, 1-866-461-2787 or by Email

Our default price is in Canadian dollars

All of our orders can be canceled prior to shipping. Special orders cannot be canceled once we have confirmed the lead times with our clients. All tire and wheel packages cannot be canceled once mounted & balanced. We do ship out pretty quickly. In order to cancel your order please contact us immediately to cancel. The easiest way is to reply to your order confirmation.

Return freight will be charged for the return

Special order items might be refused for return

Warranties vary by manufacturer. Please contact us for confirmation of warranty on parts

Brand Label Part Number
Navistar 3000070C91
Navistar 472411C91
Navistar 472412C91
Navistar 586724C91
Mack 600112
Thomas Built Buses 61300285
Thomas Built Buses 651442
Gabriel 727627
Gabriel 83456
Gabriel 89447
Ford C1TT18045F
Ford C6PF18077DK
Euclid E83300
KYB KG6201
Nuturn/leland L59090
Monroe Shocks & Struts VT1157
Mack 600112MT
NAPA Shocks 66923
Monroe Shocks & Struts 6807
Gabriel 83102
Gabriel 83300
Navistar AMS600112
Navistar AMS660112
Ford C1TZ18124G
Ford C4TA18045A
Ford C4TA18124B
Ford C7TZ18124K
PRT HD 170148
Sachs 315418
KYB 345620
Monroe Shocks & Struts 4057
Sachs 410009
Dayton Parts 44183456
DINA 472412C91
Neway 57366923
Thomas Built Buses 5808579
Monroe Shocks & Struts 600112
Monroe Shocks & Struts 601112
Monroe Shocks & Struts 661112
Monroe Shocks & Struts 6923
Ford C1TZ18124K
Ford C4TZ18124E
Motorcraft CAX923
Ford D4TZ18124E
FCS F343373
Mitsubishi Fuso MC813135
Volvo GM Heavy Truck 3919924
Neway 57306923
Mack 660112MT
Ford C4TA18045C
Ford C4TZ18124C
