Universal Joint

563
$0.00 CAD

Universal Joint
Greaseable Premium Universal Joint

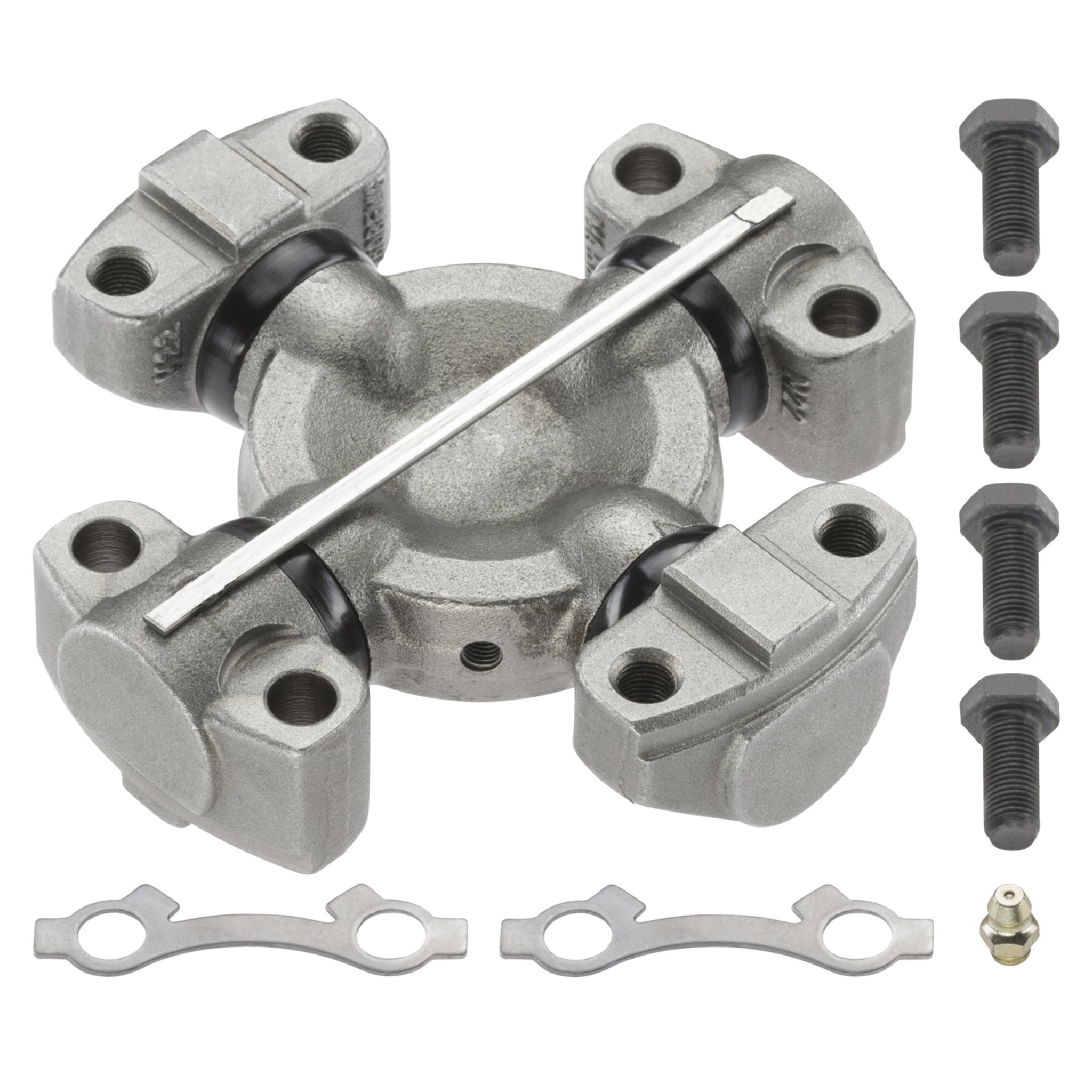

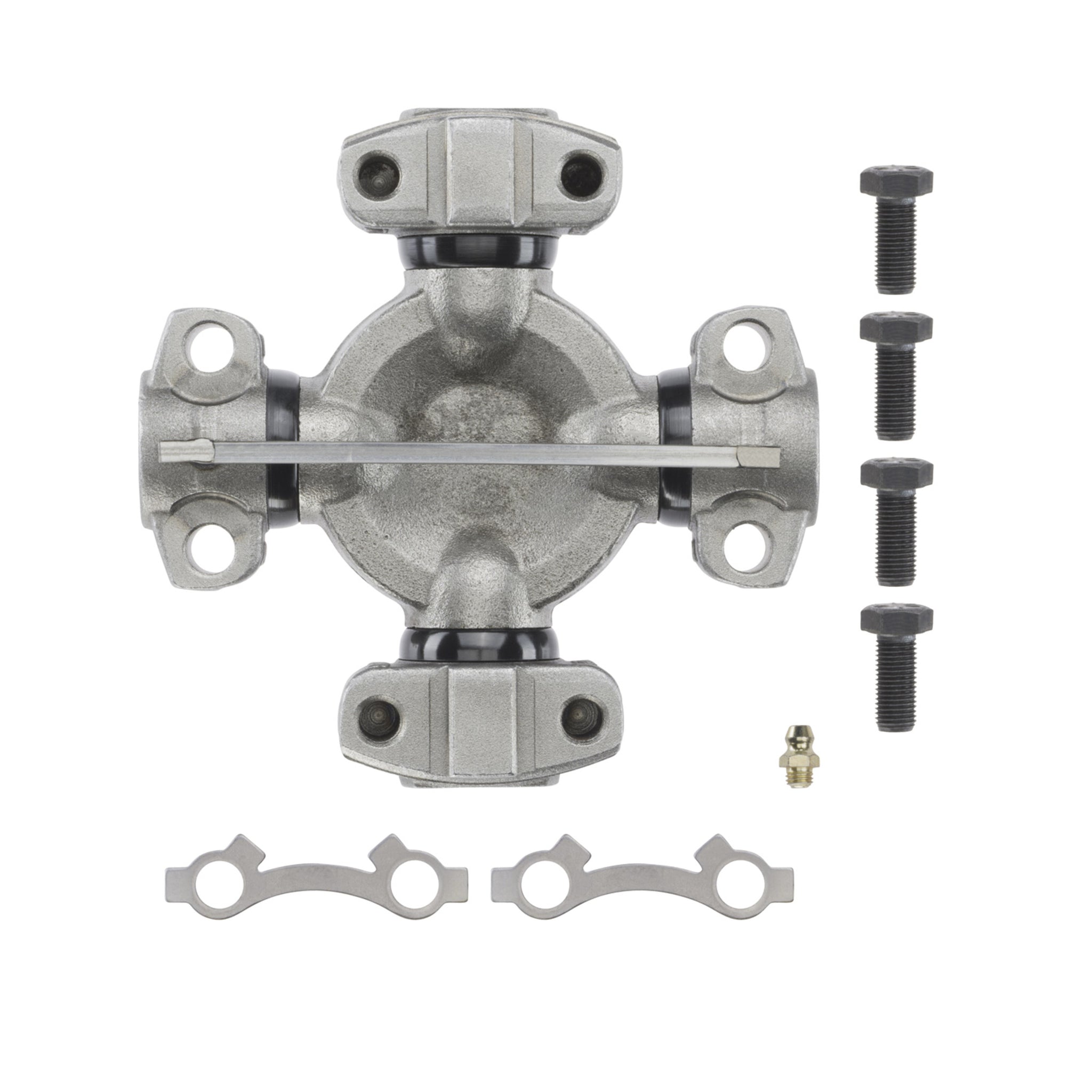

MOOG 563 Greaseable Premium Universal Joint for Case
STRONG AND DURABLE -- Bearing cups are cold-formed, case-hardened and precision ground for strength and durability
BUILT TO LAST -- Rugged design specifically engineered for fleets, off-highway and commercial vehicles
RELIABLE PERFORMANCE -- Internal anti-drainback valve integrated into thrust washer controls lubrication flow and prevents dry startup
RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by MOOG engineers for quality you can count on
INHIBITS PREMATURE WEAR -- Cross trunnions ground to a 15-25 RMS finish for a smooth surface free of microscopic grooves that can cause premature wear
GREASEABLE DESIGN -- Drilled and tapped grease fitting holes for easy servicing and cross trunnions with large grease reservoirs with radial grease channels for grease distribution
KEEPS DIRT OUT -- Abrasion-resistant nitrile seals provide ideal grease retention and protection from under-vehicle contaminants
Backed by superior materials and rigorous testing, MOOG Heavy Duty universal joints deliver reliable performance you can count on. MOOG problem-solving innovations ensure fast, hassle-free installation.
Read More
Read Less
Bearing Type Notes
Uses Delta Wing Bearings in place of Low Wing Bearings
Dimension Across Bearing Wing A - Inch
1.69
Dimension Across Bearing Wing A - mm
42.9
Dimension Across U-Joint A - Inch
4.5
Dimension Across U-Joint A - mm
114.3
Lube Fitting Location
Regular libe fitting in cross
OE Series
Mechanics 6C / Rockwell 62N
Part Description
Universal Joint
U-Joint Identification
4 Wing Bearings
Grade Type
Premium
Greaseable
YES
Bearing Cap Type
2 Low Wing Threaded and 2 High Wing Drilled
Customer satisfaction is our number 1 priority. If there is any questions that the FAQ cannot answer please contact us via Live Chat, 1-866-461-2787 or Email Us Here always guarantee the fitment of all our auto parts, tires & wheels. Our catalog is maintained daily to ensure you get the right auto parts, tires and wheels the first time!

Please review the available inventory for a basic idea of when the order will ship. The order cutoff for same-day shipping is 12 Noon. Any orders placed after will ship the next day.

Shipping is mostly free. However, in some rare circumstances, we reserve the right to charge additional freight or cancel the order. This is due to rural areas and/or oversized products

Review the complete freight policy by clicking here

Many times we can still source products. However, it may come with extra freight or fees. Simply contact us via live chat or our Contact Us page here.


Our team will be happy to help!

Our team is very accurate in our picking process. We follow multiple verifications to ensure the right part that was ordered is shipped.

Yes, we do. We have a year, make and model verification. Now with the application, there are sometimes some important notes to read about fitments. For 100% confirmation contact us

Absolutely! You can pick up your Auto Parts, Tires, and Wheels at our Ottawa Location. In order to do that please select the pickup in-store option at the checkout. Our team will reach out to you when your parts are ready for pickup. Normally a day turnaround on all available products.

If you want a more precise pickup time, We are easily reached by Live Chat, 1-866-461-2787 or by Email

Our default price is in Canadian dollars

All of our orders can be canceled prior to shipping. Special orders cannot be canceled once we have confirmed the lead times with our clients. All tire and wheel packages cannot be canceled once mounted & balanced. We do ship out pretty quickly. In order to cancel your order please contact us immediately to cancel. The easiest way is to reply to your order confirmation.

Return freight will be charged for the return

Special order items might be refused for return

Warranties vary by manufacturer. Please contact us for confirmation of warranty on parts

Brand Label Part Number
BorgWarner 114-6114
Chicago Rawhide 286102
Neapco OE Series 4-6114
Autopar - Archived 46114
Spicer 5-6102X
Perfect Circle 6102
GMB G5-6102X
GMB 1146122
Chicago Rawhide 4-6114
BorgWarner 114-6022
BorgWarner 114-6122
BorgWarner 114-6142
GMB 46114
Neapco OE Series 286114
SKF 4-6114
BorgWarner 114-6102
GMB 1146022
GMB 1146142
TRW Steering and Suspension Parts 20096
BorgWarner 114-6115
GMB 1146114
GMB 1146115
GMB 1146144
Autopar - Archived 2306102
SKF 286102
Autopar - Archived 56102X
Mcquay-Norris U6102
BorgWarner 114-6144
GMB 230-6102
Neapco OE Series 286102
ACDelco 45U4102
Autopar - Archived G56102X
GMB MC6050
BorgWarner 114-6125
GMB 1146102
GMB 1146125
SKF 286114
Chicago Rawhide 286114
Spicer DT6102
