LIFT SUPPORT
LINCOLN: 15-17 MKC
LIFTGATE LIFT SUPPORT

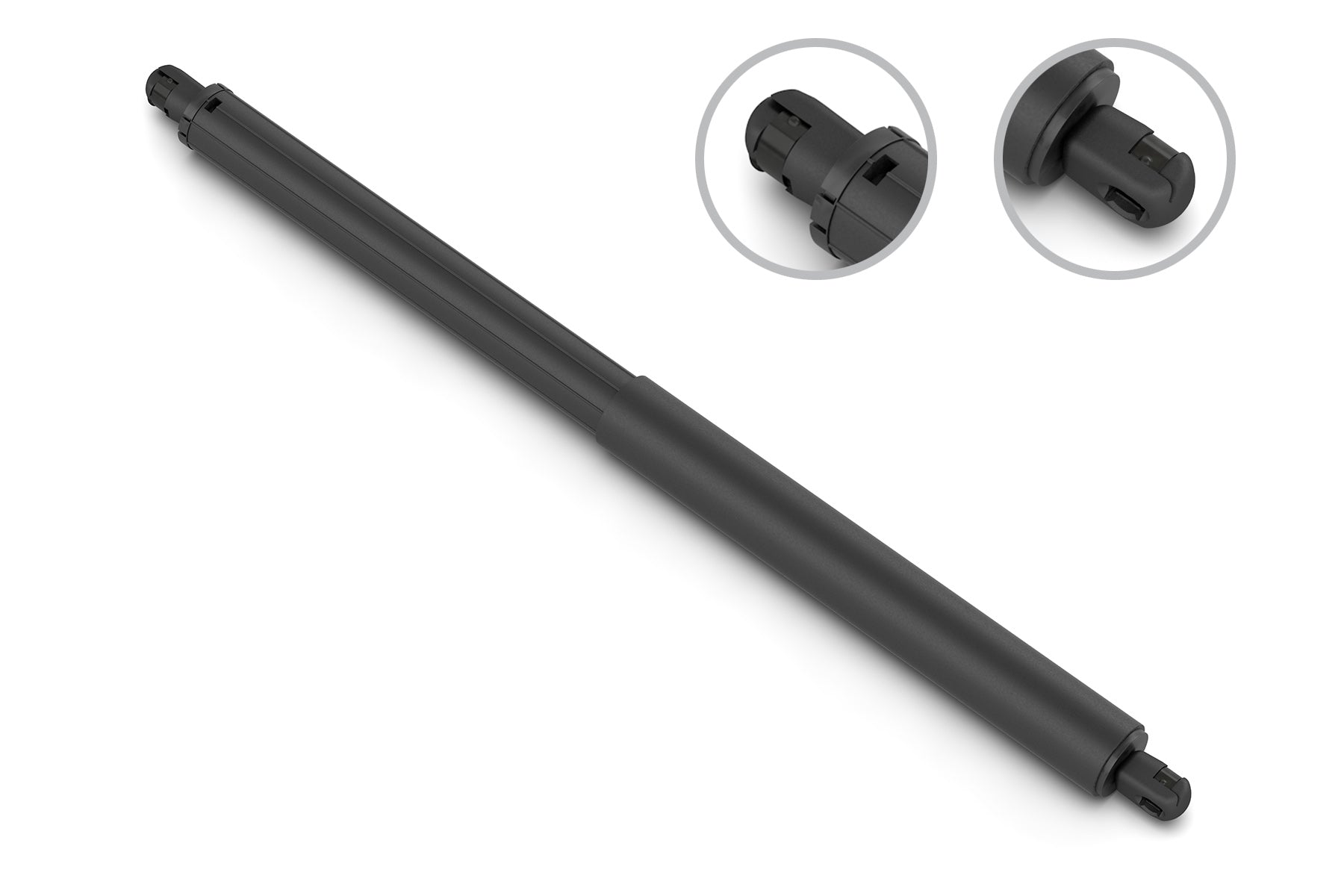

Stabilus Liftgate Lift Support
A hydraulically dampened, coilover gas charged lift support.
Based on the OE design to ensure proper fit form and function.
Combines gas and mechanical spring functions into an aesthetic package.
Easy to install and require no special tools.
For best results replace in pairs.
Part coatings tested to automotive standards for corrosion resistance.
Provides smooth opening and closing in hot or cold temperatures
Gas Spring
Gas Strut
Lift Cylinder
Lift Strut
Lift Support
Prop
Prop Rod
The force required to operate a lid is also affected by the ambient temperature. In cool weather it may not stay open safely despite high force application, while very high temperatures make closing it more difficult; the lid will then barely close. In a strut, the Stabilus gas spring is combined with a mechanical spring, which can be located on the inside or outside. This combines the advantages of the gas spring (speed control, end position damping) with those of the mechanical spring (little temperature dependency). The effect of temperature on the extension force is reduced considerably, since the load is distributed between the gas spring and the mechanical coil spring. This allows reducing the closing forces at high temperatures without increasing the opening force in cold temperatures (-30 degrees Celcius).
COILOVER LIFT-O-MAT
