LIFT SUPPORT
DODGE: 11-23 DURANGO
LIFTGATE LIFT SUPPORT (R)

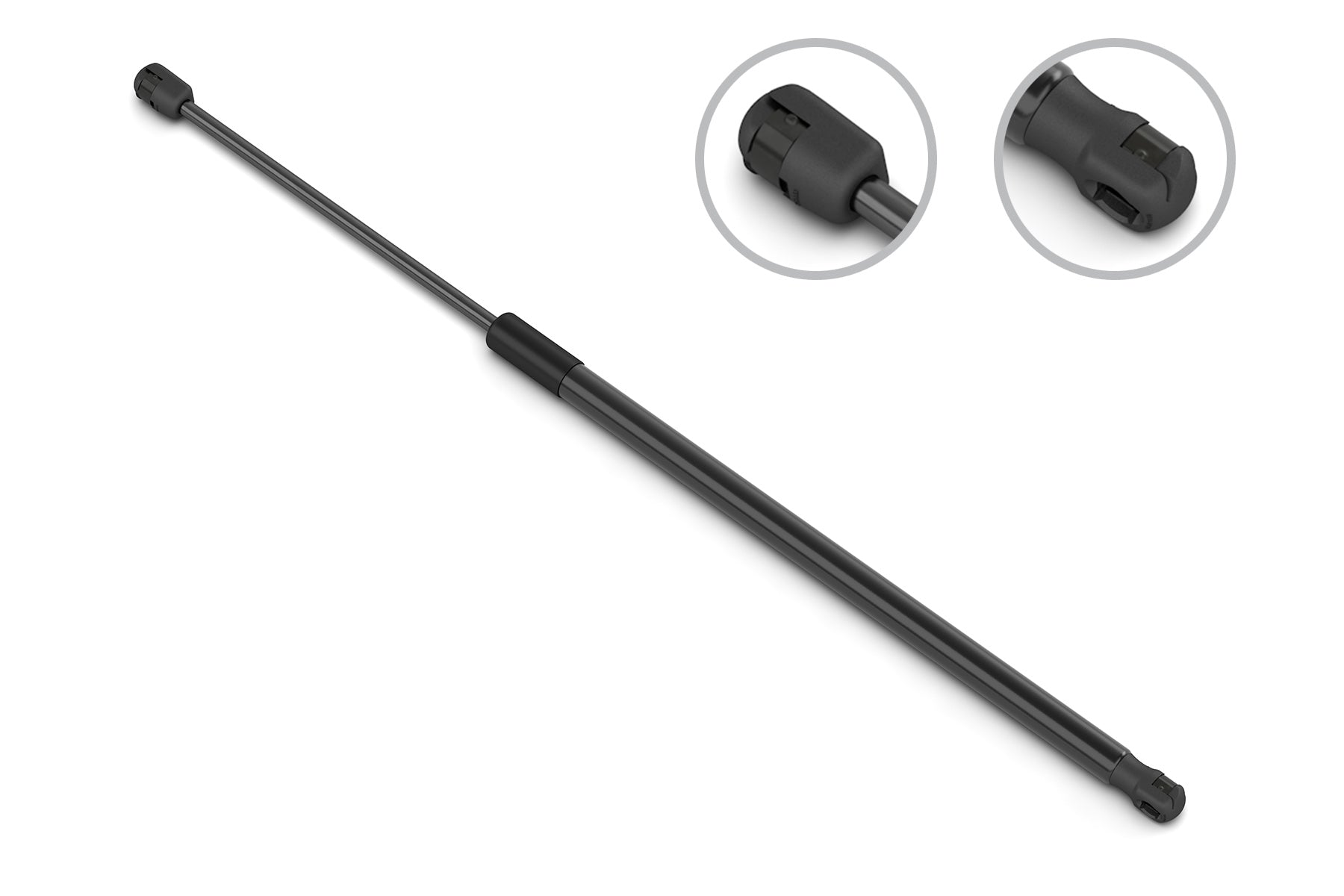

Stabilus Liftgate Lift Support (R)
A temperature compensating gas charged lift support with dynamic speed control.
Based on the OE design to ensure proper fit form and function.
Dynamic damping speed control creates a fluid opening motion. No bouncing or jerking.
Easy to install and require no special tools.
For best results replace in pairs.
Internal valve adjusts holding force for cold weather.
Part coatings tested to automotive standards for corrosion resistance.
Gas Spring
Gas Strut
Lift Cylinder
Lift Strut
Lift Support
Prop
Prop Rod
The force required to operate a lid is also affected by the ambient temperature. In cool weather it may not stay open safely despite high force application, while very high temperatures make closing it more difficult; the lid will then barely close. To minimize the influence of heat and cold on the functional properties of a lid, there is LIFT-O-MAT TCV from STABILUS. This gas spring supports closing at high temperatures. At the same time, it will hold the open tailgate safely in position at temperatures below 0 degrees Celcius. The LIFT-O-MAT TCV is a gas pressure spring that can compensate even for extreme temperature fluctuations. It has an additional gas-filled temperature compensation chamber that is separated by a valve. At temperatures above 0 degrees Celcius, this valve will close automatically, closing off the additional gas chamber. This will result in the force of the gas spring dropping, and the lid can be closed more easily.
LIFT-O-MAT
