3B-935963 Liftgate Lift Support Stabilus
Click to zoom in

Have Questions?

  • 100% Fitment Guarantee

    Use Our Fitment Confirmation Tool For Fitment Verification

  • auto parts experts

    We Know Our Auto Parts, Tires and Wheels

  • Fast Same Day Shipping

    Review Timeline For Fast Delivery. Most Orders Ships Same Day

  • Customer SatisFaction

    Customer Satisfaction Is Our #1 Priority

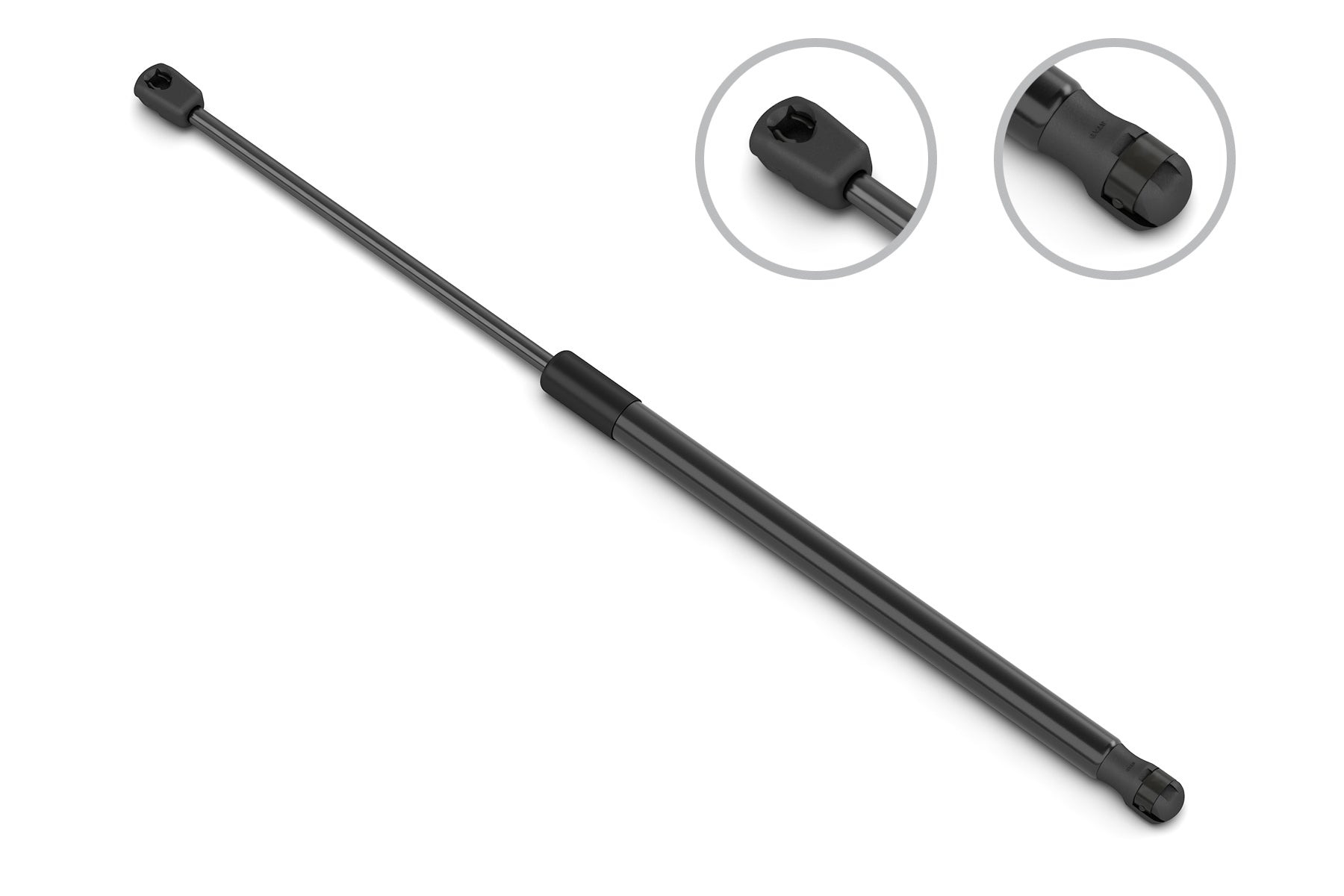

Liftgate Lift Support

Stabilus
3B-935963
$42.00 CAD
$42.00

Liftgate Lift Support
Stabilus Liftgate Lift Support
A temperature compensating gas charged lift support with dynamic speed control.
LIFTGATE LIFT SUPPORT
Based on the OE design to ensure proper fit form and function.
Dynamic damping speed control creates a fluid opening motion. No bouncing or jerking.
Easy to install and require no special tools.
For best results replace in pairs.
Internal valve adjusts holding force for cold weather.
Part coatings tested to automotive standards for corrosion resistance.
The force required to operate a lid is also affected by the ambient temperature. In cool weather it may not stay open safely despite high force application, while very high temperatures make closing it more difficult; the lid will then barely close. To minimize the influence of heat and cold on the functional properties of a lid, there is LIFT-O-MAT TCV from STABILUS. This gas spring supports closing at high temperatures. At the same time, it will hold the open tailgate safely in position at temperatures below 0 degrees Celcius. The LIFT-O-MAT TCV is a gas pressure spring that can compensate even for extreme temperature fluctuations. It has an additional gas-filled temperature compensation chamber that is separated by a valve. At temperatures above 0 degrees Celcius, this valve will close automatically, closing off the additional gas chamber. This will result in the force of the gas spring dropping, and the lid can be closed more easily.
Read More
Read Less
Agricultural Equipment
N
Application Specific
Y
CarLight Truck
Y
Engine Specific
N
Heavy Truck
N
High Performance
N
IndustrialOff Highway
N
Marine
N
Medium Truck
N
MotorCycleRV
N
NonVehicle Specific
N
Personal Watercraft
N
Prop 65 Affected
Yes
Prop 65 Chemical
DEHP
Prop 65 Warning
WARNING: This product can expose you to chemicals including di(2-ethylhexyl) phthalate (DEHP) which is known to the State of California to cause canc
Small Engine
N
Snowmobile
N
Transmission Specific
N
End 1 Mount Diameter
0.394
End 1 Mount Diameter
10.0
Compressed Length
15.96
Compressed Length
405.5
Extended Length
22.52
Extended Length
572.0
Type
GAS
End 2 Material
Nylon
End 1 Material
Nylon
End 1 Type
Ball Socket
Inner Shaft Diameter
0.394
Inner Shaft Diameter
10
Cylinder Outside Diameter
0.866
Cylinder Outside Diameter
22
Maximum Force
211
Maximum Force
940
End 2 Type
Ball Socket
Mounting Hardware Included
No
End 2 Mount Diameter
0.394
End 2 Mount Diameter
10.0
Customer satisfaction is our number 1 priority. If there is any questions that the FAQ cannot answer please contact us via Live Chat, 1-866-461-2787 or Email Us Here always guarantee the fitment of all our auto parts, tires & wheels. Our catalog is maintained daily to ensure you get the right auto parts, tires and wheels the first time!

Please review the available inventory for a basic idea of when the order will ship. The order cutoff for same-day shipping is 12 Noon. Any orders placed after will ship the next day.

Shipping is mostly free. However, in some rare circumstances, we reserve the right to charge additional freight or cancel the order. This is due to rural areas and/or oversized products

Review the complete freight policy by clicking here

Many times we can still source products. However, it may come with extra freight or fees. Simply contact us via live chat or our Contact Us page here.


Our team will be happy to help!

Our team is very accurate in our picking process. We follow multiple verifications to ensure the right part that was ordered is shipped.

Yes, we do. We have a year, make and model verification. Now with the application, there are sometimes some important notes to read about fitments. For 100% confirmation contact us

Absolutely! You can pick up your Auto Parts, Tires, and Wheels at our Ottawa Location. In order to do that please select the pickup in-store option at the checkout. Our team will reach out to you when your parts are ready for pickup. Normally a day turnaround on all available products.

If you want a more precise pickup time, We are easily reached by Live Chat, 1-866-461-2787 or by Email

Our default price is in Canadian dollars

All of our orders can be canceled prior to shipping. Special orders cannot be canceled once we have confirmed the lead times with our clients. All tire and wheel packages cannot be canceled once mounted & balanced. We do ship out pretty quickly. In order to cancel your order please contact us immediately to cancel. The easiest way is to reply to your order confirmation.

Return freight will be charged for the return

Special order items might be refused for return

Warranties vary by manufacturer. Please contact us for confirmation of warranty on parts

Brand Label Part Number
Stabilus 590588
Toyota 68908-0W101
Stabilus 920399
Stabilus 028964
Stabilus 030139
Stabilus 030453
Stabilus 605405
Stabilus 621186
Toyota 689070W100
Toyota 689080W090A
Toyota 689080W091
Stabilus 915380
Stabilus 591544
Stabilus 591783
Toyota 68907-0W090
Toyota 689070W101
Toyota 689080W101
Stabilus 590110
Stabilus 590349
Toyota 68907-0W101
Toyota 689070W091
Toyota 689080W091A
Toyota 689080W100
Stabilus 620708
Stabilus 714871
Stabilus 030451
Toyota 68907-0W091
Toyota 689070W091A
Toyota 68908-0W091
Stabilus 715110
Toyota 68908-0W100
Toyota 689080W090
Stabilus 920160
Stabilus 935963
Stabilus 606122
Toyota 68907-0W100
Toyota 689070W090
Toyota 689070W090A
Toyota 68908-0W090
Stabilus 901996
