FD-8003 CV Axle Shaft Trakmotive Canada
FD-8003 CV Axle Shaft Trakmotive Canada
FD-8003 CV Axle Shaft Trakmotive Canada
Click to zoom in

Have Questions?

  • 100% Fitment Guarantee

    Use Our Fitment Confirmation Tool For Fitment Verification

  • auto parts experts

    We Know Our Auto Parts, Tires and Wheels

  • Fast Same Day Shipping

    Review Timeline For Fast Delivery. Most Orders Ships Same Day

  • Customer SatisFaction

    Customer Satisfaction Is Our #1 Priority

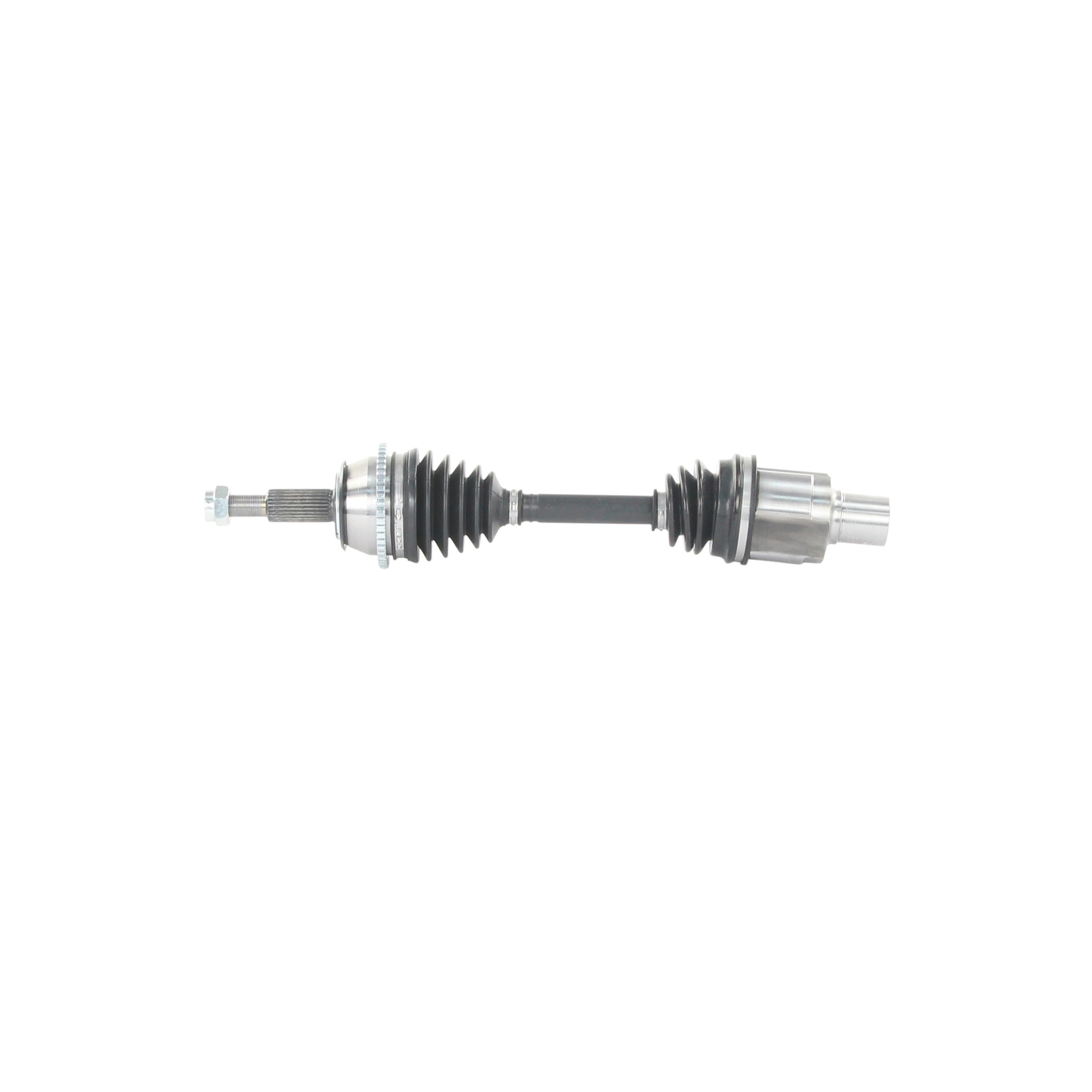

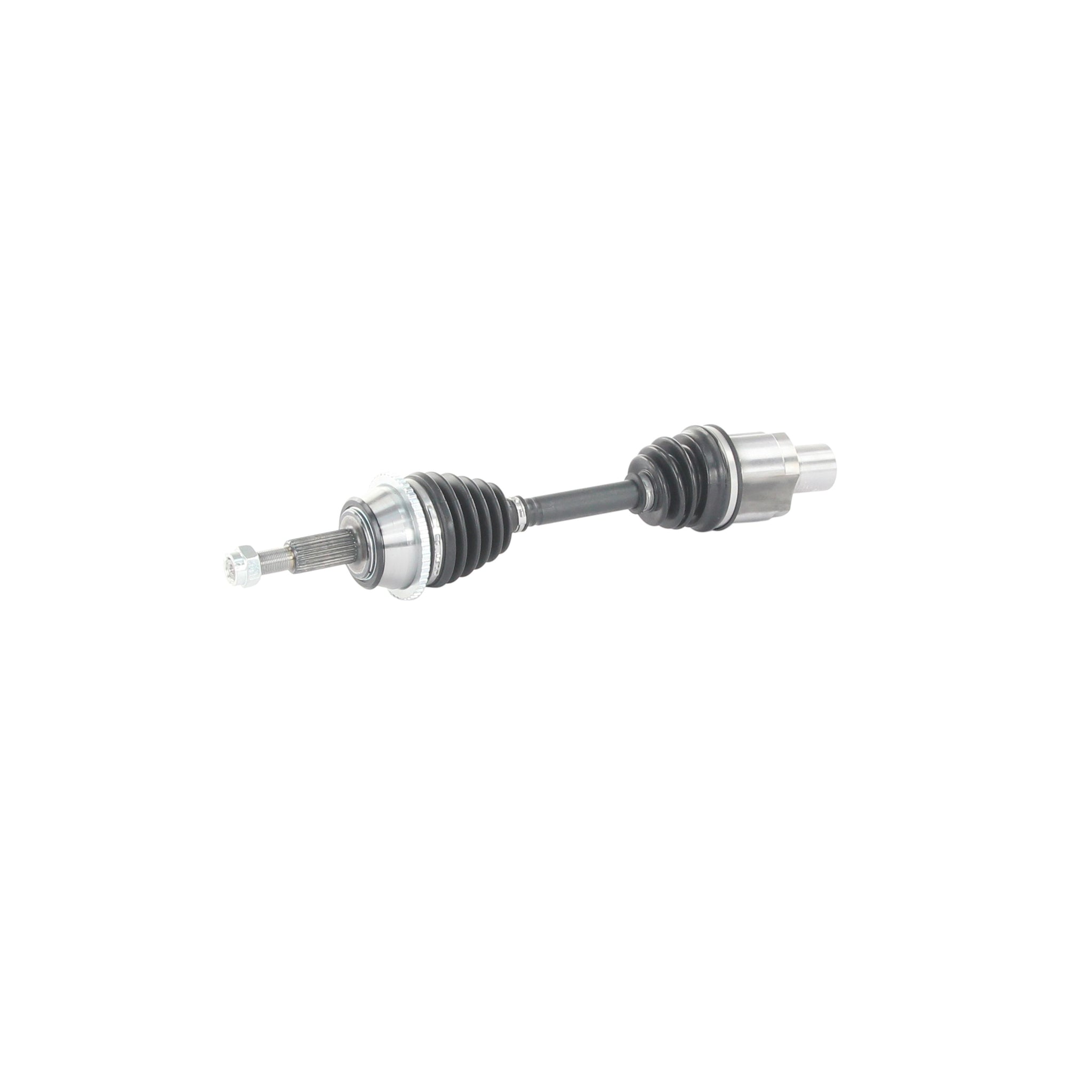

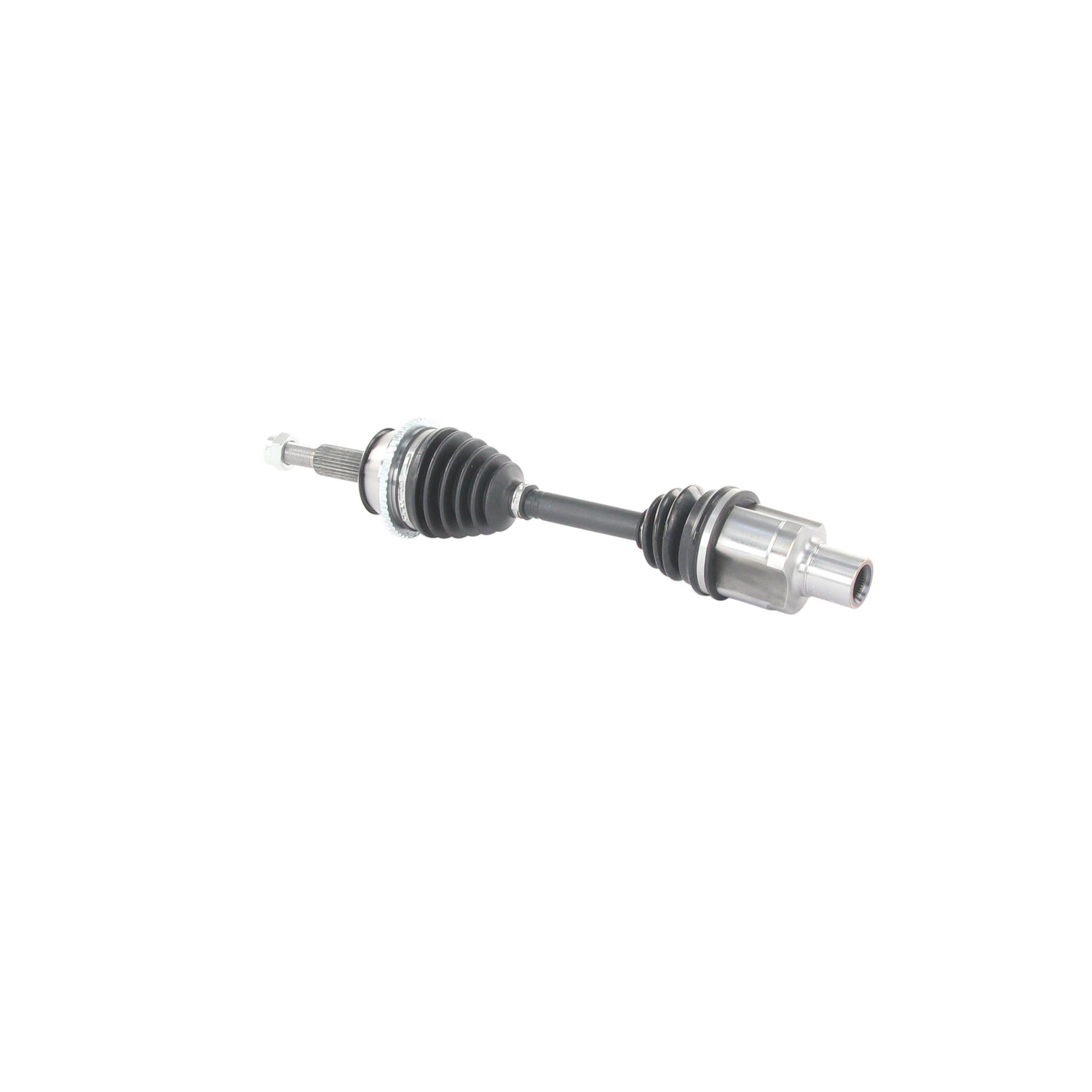

CV Axle Shaft

TrakMotive
FD-8003
$87.00 CAD
$87.00

CV Axle Shaft
CV Axle Shaft
CV Axle Shaft
Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company
Read More
Read Less
Axle Nut Length (mm)
34
Axle Nut Socket Size
30
Axle Nut Head Type
Hex
California Proposition 65 Required
N
Number Of Inboard Splines
35
Number Of Outboard Splines
26
Inboard Joint Type
Female
Inboard Shaft Connection Style
Female
Outboard Shaft Connection Style
Conventional
Overall Compressed Length (mm)
552
ABS Ring Tooth Count
50
ABS Ring Type
Toothed
Axle Nut Locking Type
Self-Lock
Grade Type
Premium
Number Of Inboard Shaft Bolts
0
ABS Tone Ring Included
Yes
Axle Nut Height (mm)
20
Axle Nut Included
Yes
Axle Nut Length (in)
1.33
Axle Nut Thread Size
M20x1.5
Inboard Joint Boot Material
Neoprene
Number Of Bolt Holes
0
Number Of Inboard Joint Bolt Holes
0
Number Of Outboard Joint Bolt Holes
0
Outboard Joint Boot Material
Neoprene
Overall Compressed Length (in)
21.73
Axle Nut Height (in)
.8
Axle Nut Hex Size (in)
1.67
Number Of Outboard Shaft Bolts
0
Axle Nut Hex Size (mm)
30
Outboard Joint Type
Conventional
Customer satisfaction is our number 1 priority. If there is any questions that the FAQ cannot answer please contact us via Live Chat, 1-866-461-2787 or Email Us Here always guarantee the fitment of all our auto parts, tires & wheels. Our catalog is maintained daily to ensure you get the right auto parts, tires and wheels the first time!

Please review the available inventory for a basic idea of when the order will ship. The order cutoff for same-day shipping is 12 Noon. Any orders placed after will ship the next day.

Shipping is mostly free. However, in some rare circumstances, we reserve the right to charge additional freight or cancel the order. This is due to rural areas and/or oversized products

Review the complete freight policy by clicking here

Many times we can still source products. However, it may come with extra freight or fees. Simply contact us via live chat or our Contact Us page here.


Our team will be happy to help!

Our team is very accurate in our picking process. We follow multiple verifications to ensure the right part that was ordered is shipped.

Yes, we do. We have a year, make and model verification. Now with the application, there are sometimes some important notes to read about fitments. For 100% confirmation contact us

Absolutely! You can pick up your Auto Parts, Tires, and Wheels at our Ottawa Location. In order to do that please select the pickup in-store option at the checkout. Our team will reach out to you when your parts are ready for pickup. Normally a day turnaround on all available products.

If you want a more precise pickup time, We are easily reached by Live Chat, 1-866-461-2787 or by Email

Our default price is in Canadian dollars

All of our orders can be canceled prior to shipping. Special orders cannot be canceled once we have confirmed the lead times with our clients. All tire and wheel packages cannot be canceled once mounted & balanced. We do ship out pretty quickly. In order to cancel your order please contact us immediately to cancel. The easiest way is to reply to your order confirmation.

Return freight will be charged for the return

Special order items might be refused for return

Warranties vary by manufacturer. Please contact us for confirmation of warranty on parts

Brand Label Part Number
OEM Part Number 4F1Z3B437BA
CARDONE Reman 60-2137
EMPI 80-2623
OEM Part Number E9OY3V427AARM
ODM FD-8-8509A
GSP NCV11521
Prestige Autotech 1349
CARDONE Reman 60-2020
CARDONE Reman 60-2138
CARDONE Reman 66-2008
Diversified Shafts Solutions 8231N
Heri Automotive 92320
USA Industries AX-85179
Mevotech CV4145
OEM Part Number F6DZ3B437A
Drive Tech America FD-5033
Advance Auto Parts 800197
Heri Automotive 92338
Fenwick CV6521
ProTech FD10532
Heri Automotive 71203
USA Industries AX-8517
OEM Part Number F2DZ3B437B
OEM Part Number F5DZ3B437A
Auto Plus 169003
USA Industries 7085179
American Remanufactured 80-2338
TrakMotive FD-8003
Fenwick NCV6521A
CARDONE Reman 60-2002
OEM Part Number F2DZ3B437A
OEM Part Number F5DZ3A427BA
Drive Tech America FD-5033A
American Remanufactured 40-15033S
Advance Auto Parts 410159
CARDONE Reman 60-2008
Heri Automotive 92317
OEM Part Number F4DZ3B437A
CARDONE Reman MP2138
TrakMotive MX-15033S
