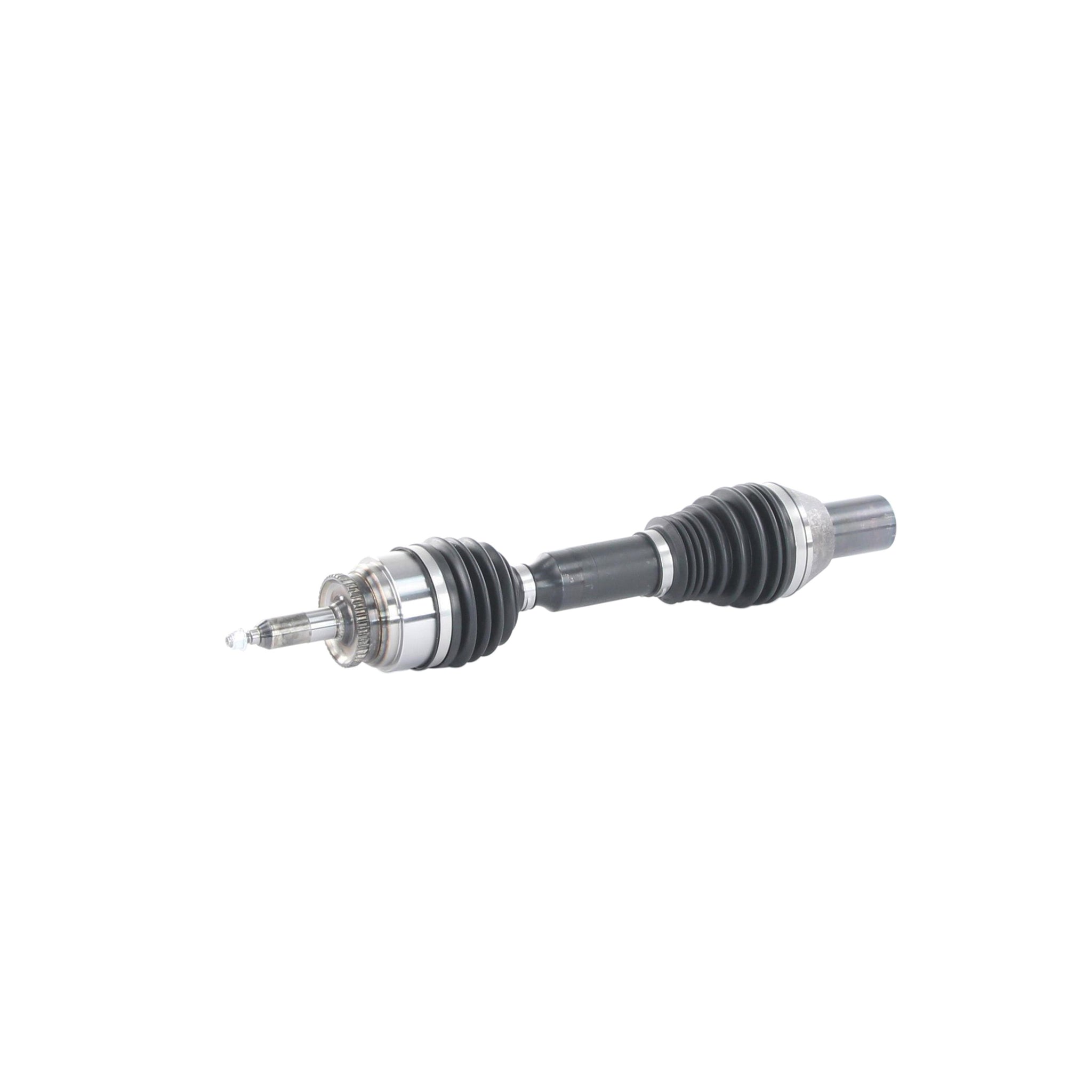

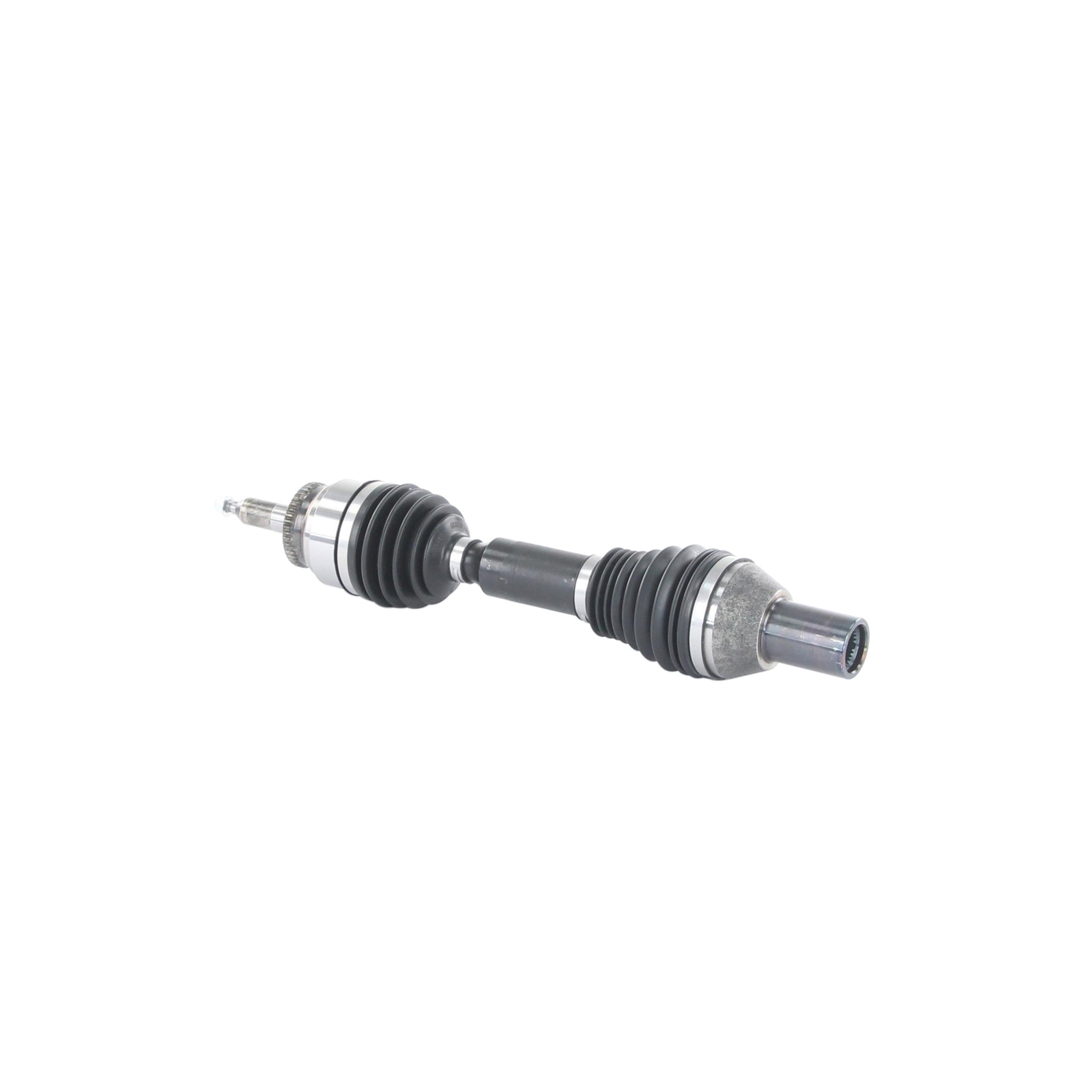

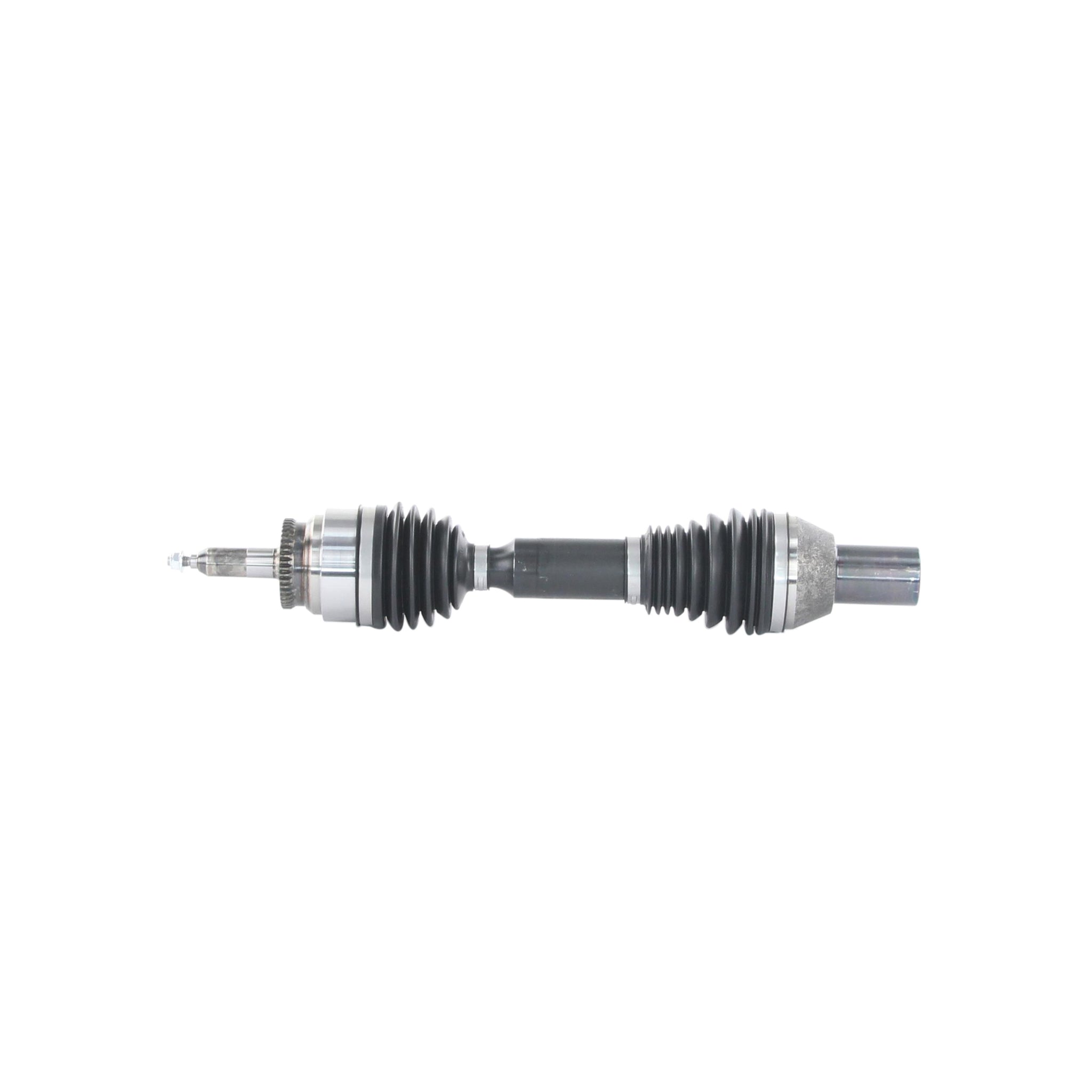

Extended Travel HD CV Axle Shaft

TrakMotive
FD-8173XTT
$285.00
$285.00
Extended Travel HD CV Axle Shaft
Description
Extended Travel CV Axle Shaft
Extended Travel CV Axle Shaft
Extended Travel CV Axle Shaft
Extended Travel CV Axle Shaft
Extended Travel CV Axles are designed with a sliding center bar that provides up to 44mm more travel than an OEM CV shaft. Additionally, the CV joints can achieve a up to a 47 degree articulation angle compared to a maximum 23 degree articulation angle on a typical OE CV joint.
Read More
Read Less
Axle Bolt Hex Size (mm)
N/A
Axle Nut Hex Size (in)
0.55
Axle Nut Hex Size (mm)
14
Axle Nut Length (in)
0.64
Axle Nut Thread Size
M10*1.5
Inboard Bolt Head Size (mm)
N/A
Inboard Bolt Head Type
N/A
Inboard Bolt Length (mm)
N/A
Number Of Bolt Holes
N/A
Number Of Inboard Joint Bolt Holes
N/A
Outboard Bolt Length (mm)
N/A
Overall Compressed Length (mm)
555
Abs Tone Ring Included
No
Axle Bolt Thread Size
N/A
Axle Nut Head Type
Hex
Axle Nut Height (in)
0.41
Axle Nut Length (mm)
16.16
Inboard Bolt Head Size (in)
N/A
New Or Remanufactured
New
Number Of Inboard Shaft Bolts
N/A
Number Of Outboard Joint Bolt Holes
N/A
Outboard Bolt Head Size (mm)
N/A
Outboard Shaft Connection Style
Spline
Overall Compressed Length (in)
21.85
Abs Ring Tooth Count
N/A
Abs Ring Type
N/A
Axle Nut Included
Yes
Inboard Bolt Length (in)
N/A
Inboard Bolt Thread Size
N/A
Number Of Inboard Splines
31-2
Number Of Outboard Shaft Bolts
N/A
Outboard Bolt Head Size (in)
N/A
Outboard Bolt Head Type
N/A
Axle Bolt Length (mm)
N/A
Axle Nut Height (mm)
10.5
Axle Nut Locking Type
Self-Lock
Boot Material
Neoprene
Inboard Joint Type
Female
Inboard Shaft Connection Style
Spline
Number Of Outboard Splines
45
Outboard Bolt Length (in)
N/A
Outboard Joint Bolt Thread Size
N/A
Outboard Joint Type
Conventional
Customer satisfaction is our number 1 priority. If there is any questions that the FAQ cannot answer please contact us via Live Chat, 1-866-461-2787 or Email Us Here always guarantee the fitment of all our auto parts, tires & wheels. Our catalog is maintained daily to ensure you get the right auto parts, tires and wheels the first time!

Please review the available inventory for a basic idea of when the order will ship. The order cutoff for same-day shipping is 12 Noon. Any orders placed after will ship the next day.

Shipping is mostly free. However, in some rare circumstances, we reserve the right to charge additional freight or cancel the order. This is due to rural areas and/or oversized products

Review the complete freight policy by clicking here

Many times we can still source products. However, it may come with extra freight or fees. Simply contact us via live chat or our Contact Us page here.


Our team will be happy to help!Ā

Our team is very accurate in our picking process. We follow multiple verifications to ensure the right part that was ordered is shipped.Ā

Yes, we do. We have a year, make and model verification. Now with the application, there are sometimes some important notes to read about fitments. For 100% confirmation contact us

Absolutely! You can pick up your Auto Parts, Tires, and Wheels at our Ottawa Location. In order to do that please select the pickup in-store option at the checkout. Our team will reach out to you when your parts are ready for pickup. Normally a day turnaround on all available products.

If you want a more precise pickup time, We are easily reached by Live Chat,Ā 1-866-461-2787Ā or byĀ Email

Our default price is in Canadian dollars

All of our orders can be canceled prior to shipping. Special orders cannot be canceled once we have confirmed the lead times with our clients. All tire and wheel packages cannot be canceled once mounted & balanced. We do ship out pretty quickly. In order to cancel your order please contact us immediately to cancel. The easiest way is to reply to your order confirmation.

Return freight will be charged for the return

Special order items might be refused for return

Warranties vary by manufacturer. Please contact us for confirmation of warranty on parts

Brand Label Part Number
CARDONE Reman 60-2192
CARDONE Reman 66-2192
Heri Automotive 71170
Heri Automotive 71170XD
OEM Part Number 7L1Z3B436A
EMPI 80-2942
Diversified Shafts Solutions 8306N
OEM Part Number AL1Z3A428A
OEM Part Number AL1Z3A428B
USA Industries AX-8787
ODM FD-8-8720
TrakMotive FD-8173XTT
ProTech FD10554
GSP NCV11159
Advance Auto Parts NCV428572
OEM Part Number TX473
OEM Part Number TX560
OEM Part Number TX581
