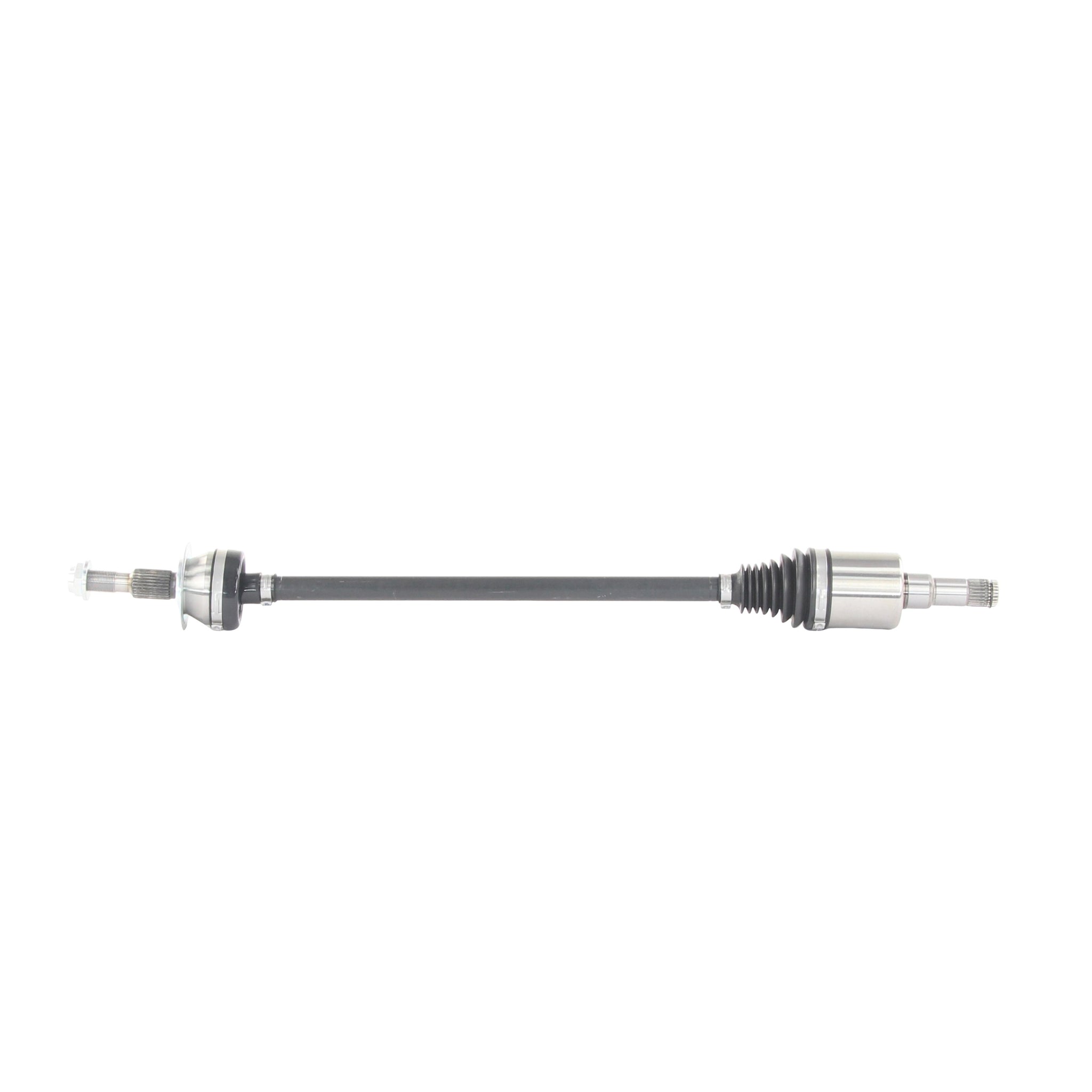

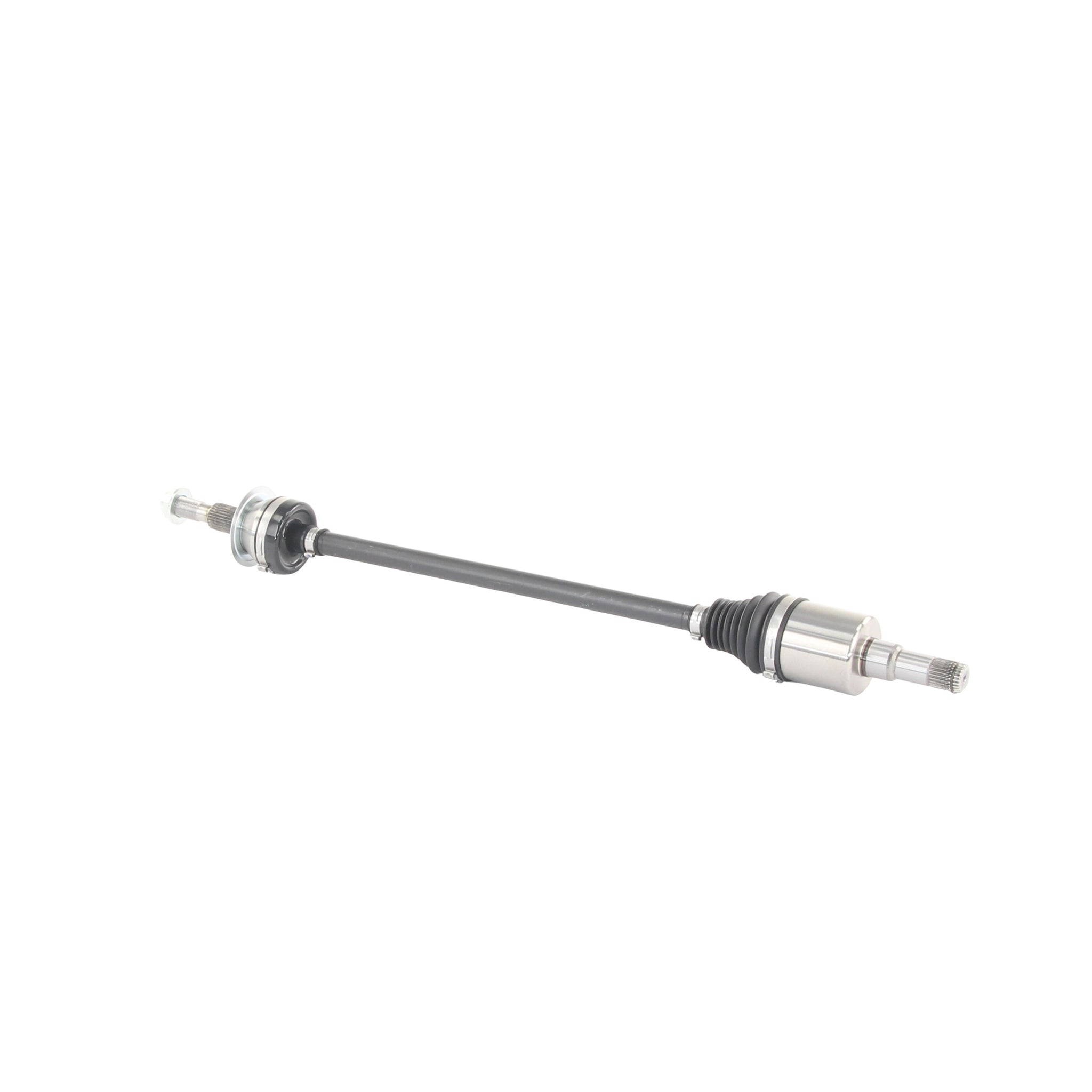

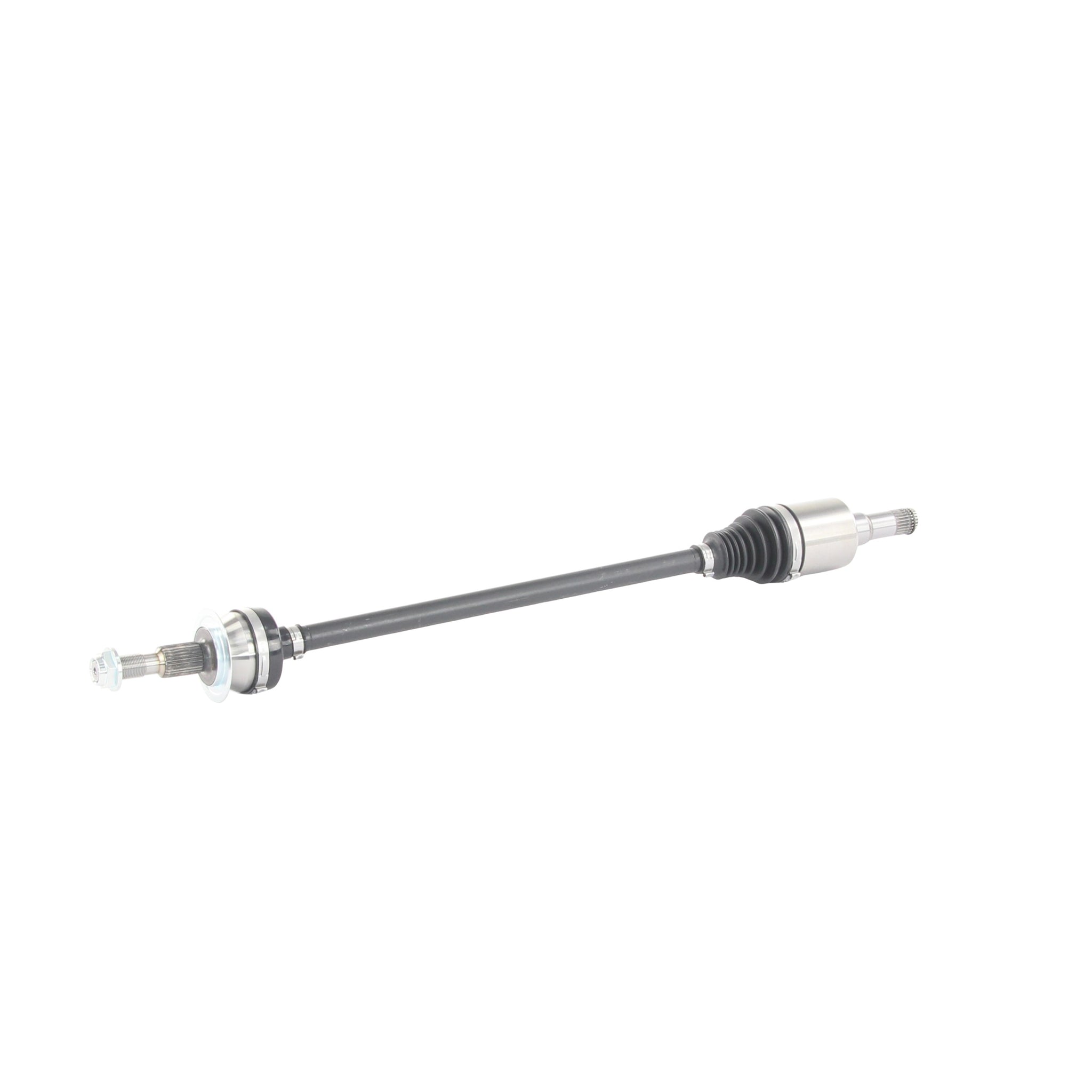

FD-86052 AAR CV Axle Shaft Trakmotive Canada
FD-86052 AAR CV Axle Shaft Trakmotive Canada
FD-86052 AAR CV Axle Shaft Trakmotive Canada
Click to zoom in
Load image into Gallery viewer, FD-86052 AAR CV Axle Shaft Trakmotive Canada
Load image into Gallery viewer, FD-86052 AAR CV Axle Shaft Trakmotive Canada
Load image into Gallery viewer, FD-86052 AAR CV Axle Shaft Trakmotive Canada

Have Questions?

1-866-461-2787

  • 100% Fitment Guarantee

    Use Our Fitment Confirmation Tool For Fitment Verification

  • auto parts experts

    We Know Our Auto Parts, Tires and Wheels

  • Fast Same Day Shipping

    Review Timeline For Fast Delivery. Most Orders Ships Same Day

  • Customer SatisFaction

    Customer Satisfaction Is Our #1 Priority

AAR CV Axle Shaft

TrakMotive
FD-86052
$140.00 CAD
AAR CV Axle Shaft
Description
AAR CV Axle Shaft
AAR CV Axle Shaft
AAR CV Axle Shaft
Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company
Read More
Read Less
Axle Nut Length (mm)
36.72
Grade Type
Premium
Outboard Joint Bolt Thread Size
N/A
Axle Nut Hex Size (in)
1 1/4
Axle Nut Thread Size
M22*1.5
California Proposition 65 Required
N
Inboard Bolt Head Size (mm)
N/A
Inboard Joint Type
Male
Number Of Bolt Holes
N/A
Number Of Outboard Joint Bolt Holes
N/A
Axle Bolt Length (mm)
N/A
Axle Nut Included
Yes
Axle Nut Length (in)
1 7/16
Number Of Inboard Splines
25
Number Of Outboard Shaft Bolts
N/A
Number Of Outboard Splines
27
ABS Ring Tooth Count
N/A
ABS Ring Type
N/A
Inboard Bolt Length (in)
N/A
Outboard Bolt Head Size (in)
N/A
Outboard Bolt Head Type
N/A
Overall Compressed Length (mm)
857
Overall Extended Length (mm)
912
Axle Nut Hex Size (mm)
31.8
Axle Nut Locking Type
Self-Lock
Inboard Bolt Thread Size
N/A
Inboard Joint Boot Material
Thermoplastic
Inboard Shaft Connection Style
Spline
Outboard Bolt Length (in)
N/A
Outboard Joint Boot Material
Thermoplastic
ABS Tone Ring Included
No
Axle Nut Head Type
Hex
Inboard Bolt Head Size (in)
N/A
Number Of Inboard Shaft Bolts
N/A
Outboard Bolt Head Size (mm)
N/A
Overall Compressed Length (in)
33 3/4
Axle Bolt Thread Size
N/A
Inboard Bolt Length (mm)
N/A
Outboard Shaft Connection Style
Spline
Overall Extended Length (in)
35.875
Axle Bolt Hex Size (mm)
N/A
Axle Nut Height (in)
3/4
Axle Nut Height (mm)
18.9
Axle Nut Socket Size
32
Inboard Bolt Head Type
N/A
Number Of Inboard Joint Bolt Holes
N/A
Outboard Bolt Length (mm)
N/A
Outboard Joint Type
Conventional
Overall Extended Length (in)
35 7/8
