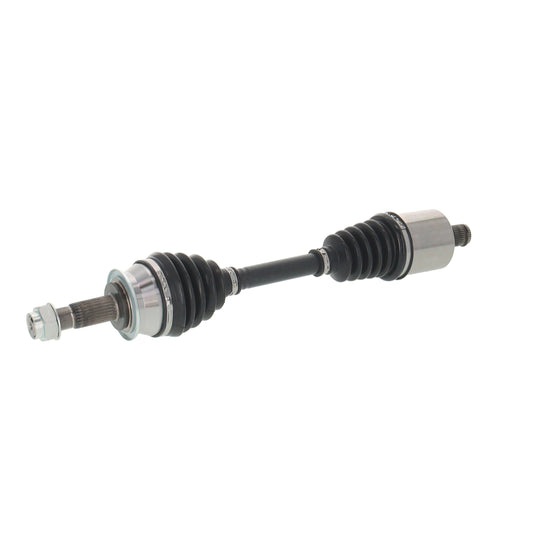

GM-8223 CV Axle Shaft Trakmotive Canada
GM-8223 CV Axle Shaft Trakmotive Canada
GM-8223 CV Axle Shaft Trakmotive Canada
Click to zoom in

Have Questions?

  • 100% Fitment Guarantee

    Use Our Fitment Confirmation Tool For Fitment Verification

  • auto parts experts

    We Know Our Auto Parts, Tires and Wheels

  • Fast Same Day Shipping

    Review Timeline For Fast Delivery. Most Orders Ships Same Day

  • Customer SatisFaction

    Customer Satisfaction Is Our #1 Priority

CV Axle Shaft

TrakMotive
GM-8223
$107.00 CAD
$107.00

CV Axle Shaft
CV Axle Shaft
CV Axle Shaft
Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company
Read More
Read Less
Axle Nut Included
Yes
Axle Nut Locking Type
Self-Lock
Inboard Shaft Connection Style
Male
Axle Nut Length (in)
1.625
Inboard Joint Boot Material
Neoprene
Number Of Bolt Holes
0
Number Of Outboard Joint Bolt Holes
0
Outboard Joint Boot Material
Neoprene
Outboard Joint Type
Conventional
Axle Nut Height (in)
.86
Axle Nut Hex Size (in)
1.43
Number Of Outboard Shaft Bolts
0
Number Of Outboard Splines
30
Outboard Shaft Connection Style
Conventional
Overall Compressed Length (mm)
607
Axle Nut Hex Size (mm)
36
Axle Nut Height (mm)
22
Grade Type
Premium
Number Of Inboard Shaft Bolts
0
Number Of Inboard Splines
34
ABS Ring Tooth Count
0
ABS Tone Ring Included
No
Axle Nut Head Type
Hex
Axle Nut Socket Size
36
Overall Compressed Length (in)
23.9
Axle Nut Length (mm)
42
Axle Nut Thread Size
M24x2
California Proposition 65 Required
N
Inboard Joint Type
Male
Number Of Inboard Joint Bolt Holes
0
Customer satisfaction is our number 1 priority. If there is any questions that the FAQ cannot answer please contact us via Live Chat, 1-866-461-2787 or Email Us Here always guarantee the fitment of all our auto parts, tires & wheels. Our catalog is maintained daily to ensure you get the right auto parts, tires and wheels the first time!

Please review the available inventory for a basic idea of when the order will ship. The order cutoff for same-day shipping is 12 Noon. Any orders placed after will ship the next day.

Shipping is mostly free. However, in some rare circumstances, we reserve the right to charge additional freight or cancel the order. This is due to rural areas and/or oversized products

Review the complete freight policy by clicking here

Many times we can still source products. However, it may come with extra freight or fees. Simply contact us via live chat or our Contact Us page here.


Our team will be happy to help!

Our team is very accurate in our picking process. We follow multiple verifications to ensure the right part that was ordered is shipped.

Yes, we do. We have a year, make and model verification. Now with the application, there are sometimes some important notes to read about fitments. For 100% confirmation contact us

Absolutely! You can pick up your Auto Parts, Tires, and Wheels at our Ottawa Location. In order to do that please select the pickup in-store option at the checkout. Our team will reach out to you when your parts are ready for pickup. Normally a day turnaround on all available products.

If you want a more precise pickup time, We are easily reached by Live Chat, 1-866-461-2787 or by Email

Our default price is in Canadian dollars

All of our orders can be canceled prior to shipping. Special orders cannot be canceled once we have confirmed the lead times with our clients. All tire and wheel packages cannot be canceled once mounted & balanced. We do ship out pretty quickly. In order to cancel your order please contact us immediately to cancel. The easiest way is to reply to your order confirmation.

Return freight will be charged for the return

Special order items might be refused for return

Warranties vary by manufacturer. Please contact us for confirmation of warranty on parts

Brand Label Part Number
TrakMotive GM-8223
CARDONE Reman 60-1416
IMC 40708005
USA Industries 703741
GSP NCV10242
OEM Part Number 88957150
Heri Automotive 95083
USA Industries AX-3341
CARDONE Reman 66-1416
Heri Automotive 70104
Advance Auto Parts NCV10242
Auto Plus 179223
ODM GC-8-8698
EMPI 80-1332
ProTech GM10534ER
