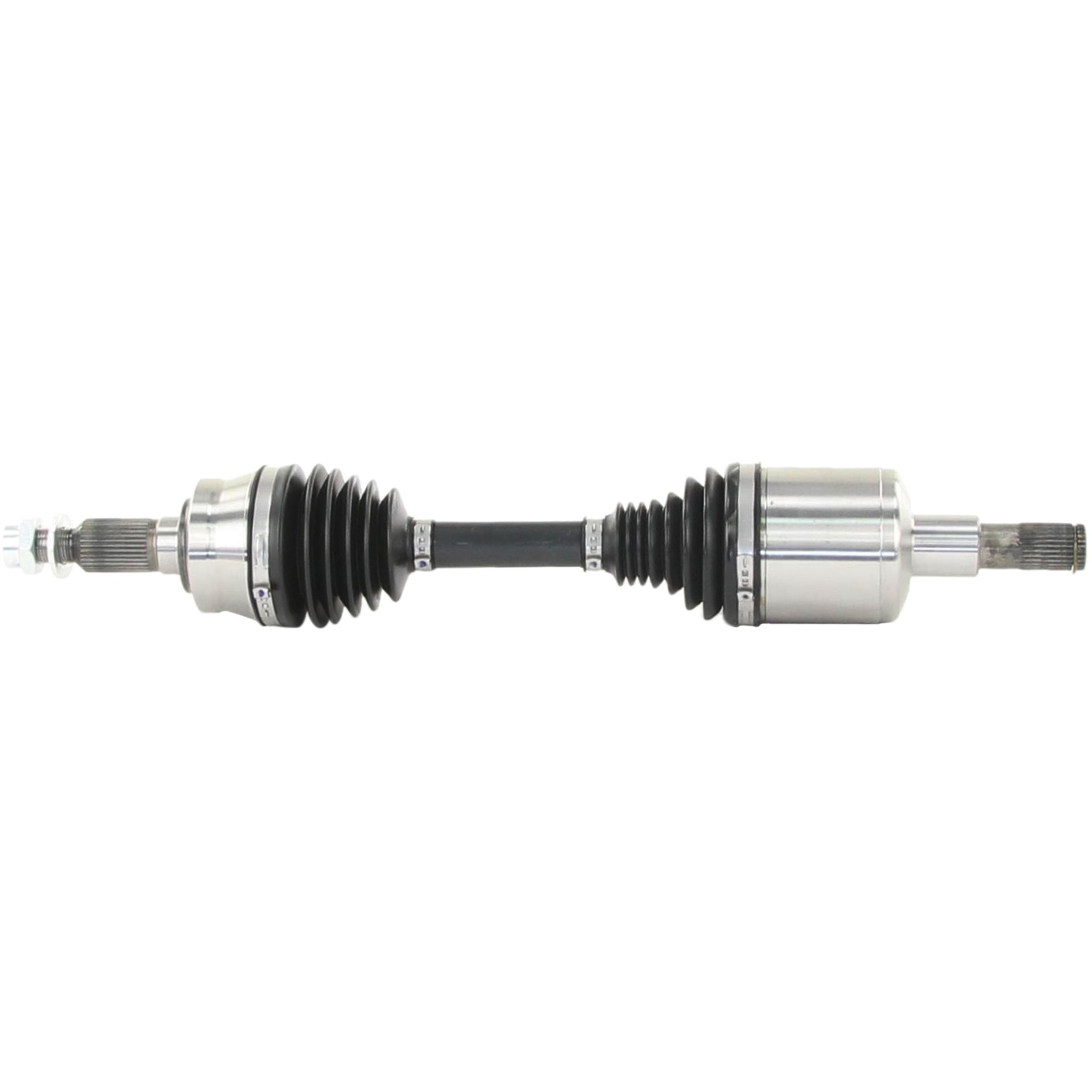

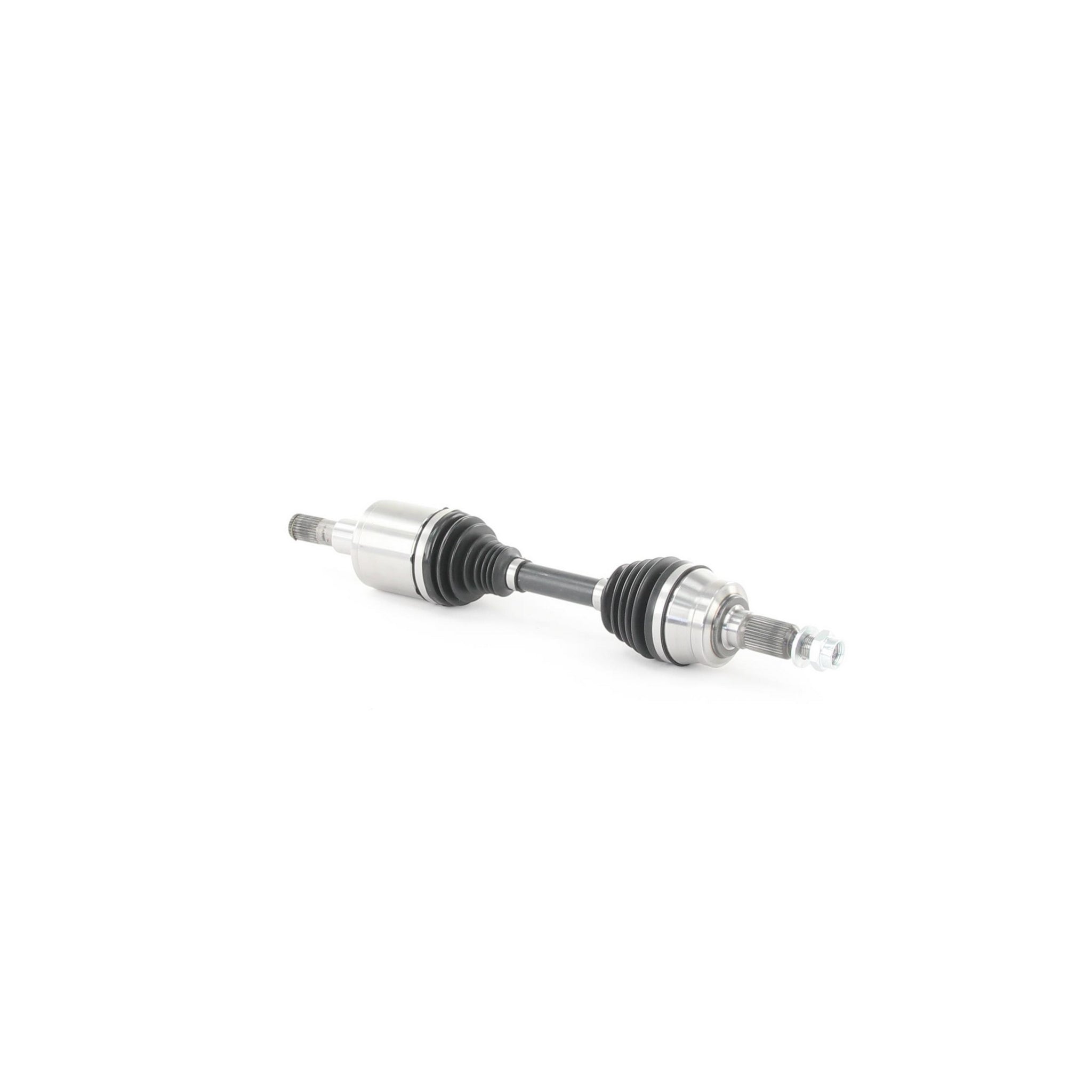

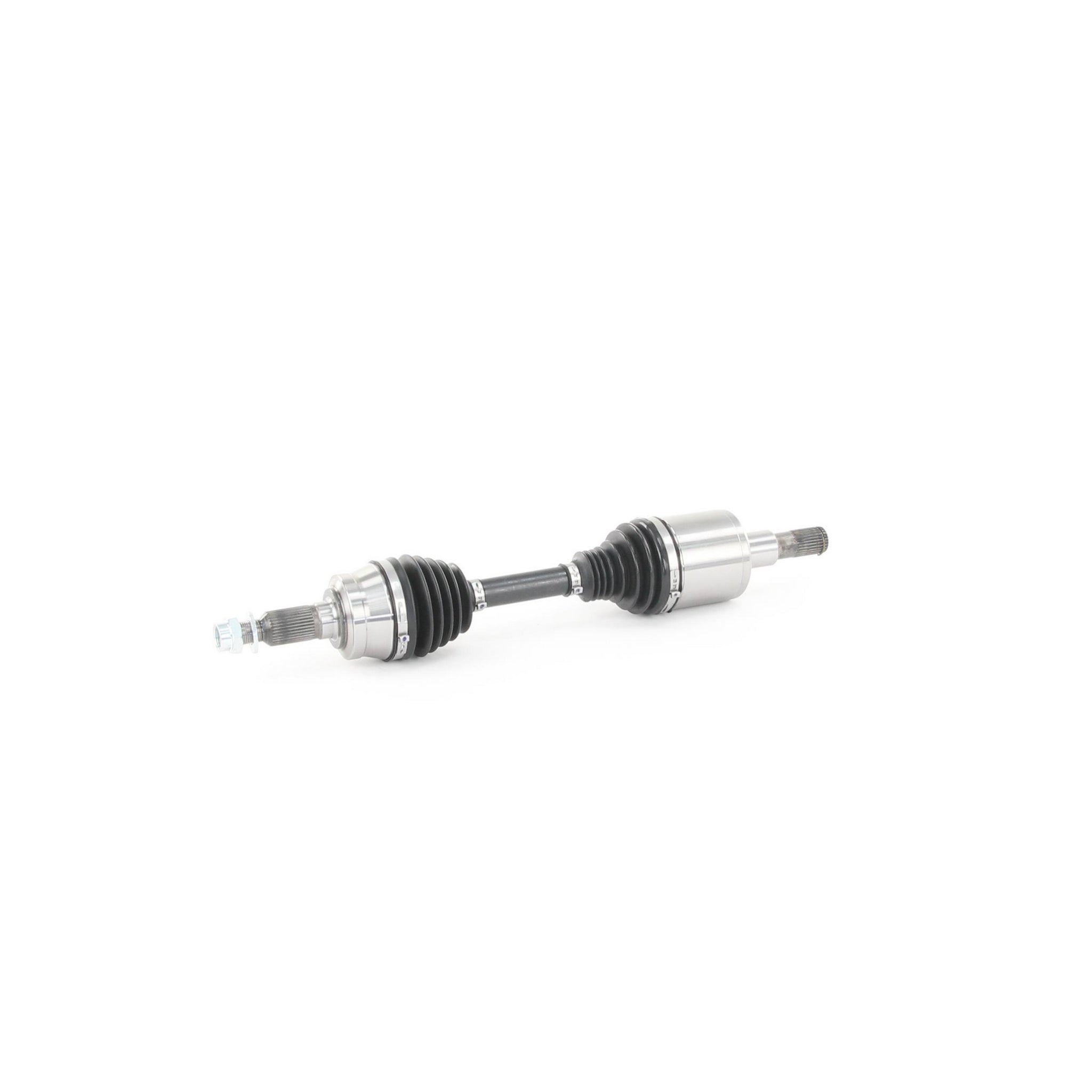

GM-86018 CV Axle Shaft Trakmotive Canada GM-86018 CV Axle Shaft Trakmotive Canada GM-86018 CV Axle Shaft Trakmotive Canada
GM-86018 CV Axle Shaft Trakmotive Canada GM-86018 CV Axle Shaft Trakmotive Canada GM-86018 CV Axle Shaft Trakmotive Canada
GM-86018 CV Axle Shaft Trakmotive Canada GM-86018 CV Axle Shaft Trakmotive Canada GM-86018 CV Axle Shaft Trakmotive Canada
Click to zoom in
Load image into Gallery viewer, GM-86018 CV Axle Shaft Trakmotive Canada
Load image into Gallery viewer, GM-86018 CV Axle Shaft Trakmotive Canada
Load image into Gallery viewer, GM-86018 CV Axle Shaft Trakmotive Canada

Have Questions?

1-866-461-2787

  • 100% Fitment Guarantee

    Use Our Fitment Confirmation Tool For Fitment Verification

  • auto parts experts

    We Know Our Auto Parts, Tires and Wheels

  • Fast Same Day Shipping

    Review Timeline For Fast Delivery. Most Orders Ships Same Day

  • Customer SatisFaction

    Customer Satisfaction Is Our #1 Priority

CV Axle Shaft

TrakMotive
GM-86018
$213.00
$213.00
CV Axle Shaft
Description
CV Axle Shaft
CV Axle Shaft
CV Axle Shaft
CV Axle Shaft
Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company
CV Axle Shaft
Read More
Read Less
Abs Ring Tooth Count
N/A
Abs Ring Type
N/A
Axle Bolt Length (mm)
N/A
Axle Nut Hex Size (in)
N/A
Axle Nut Hex Size (mm)
36
Axle Nut Length (in)
N/A
Axle Nut Locking Type
Self-Lock
Number Of Outboard Shaft Bolts
N/A
Number Of Outboard Splines
33
Outboard Bolt Head Size (in)
N/A
Outboard Shaft Connection Style
Spline
Axle Bolt Thread Size
N/A
Axle Nut Height (mm)
21.5
Inboard Bolt Head Size (in)
N/A
Inboard Bolt Head Type
N/A
Inboard Bolt Length (mm)
N/A
New Or Remanufactured
New
Number Of Inboard Shaft Bolts
N/A
Outboard Bolt Head Type
N/A
Overall Compressed Length (mm)
645
Overall Extended Length (in)
27.99
Abs Tone Ring Included
No
Axle Bolt Hex Size (mm)
N/A
Axle Nut Head Type
Hex
Axle Nut Height (in)
N/A
Inboard Bolt Head Size (mm)
N/A
Inboard Joint Type
Male
Number Of Bolt Holes
N/A
Number Of Inboard Joint Bolt Holes
N/A
Number Of Outboard Joint Bolt Holes
N/A
Outboard Bolt Head Size (mm)
N/A
Outboard Bolt Length (mm)
N/A
Outboard Joint Type
Conventional
Axle Nut Included
Yes
Axle Nut Length (mm)
41.57
Axle Nut Thread Size
M24*2
Boot Material
Neoprene
Inboard Bolt Length (in)
N/A
Inboard Bolt Thread Size
N/A
Inboard Shaft Connection Style
Spline
Number Of Inboard Splines
28
Outboard Bolt Length (in)
N/A
Outboard Joint Bolt Thread Size
N/A
Overall Compressed Length (in)
25.39
Overall Extended Length (mm)
711
