TO-8157 CV Axle Shaft Trakmotive Canada
TO-8157 CV Axle Shaft Trakmotive Canada
TO-8157 CV Axle Shaft Trakmotive Canada
Click to zoom in

Have Questions?

  • 100% Fitment Guarantee

    Use Our Fitment Confirmation Tool For Fitment Verification

  • auto parts experts

    We Know Our Auto Parts, Tires and Wheels

  • Fast Same Day Shipping

    Review Timeline For Fast Delivery. Most Orders Ships Same Day

  • Customer SatisFaction

    Customer Satisfaction Is Our #1 Priority

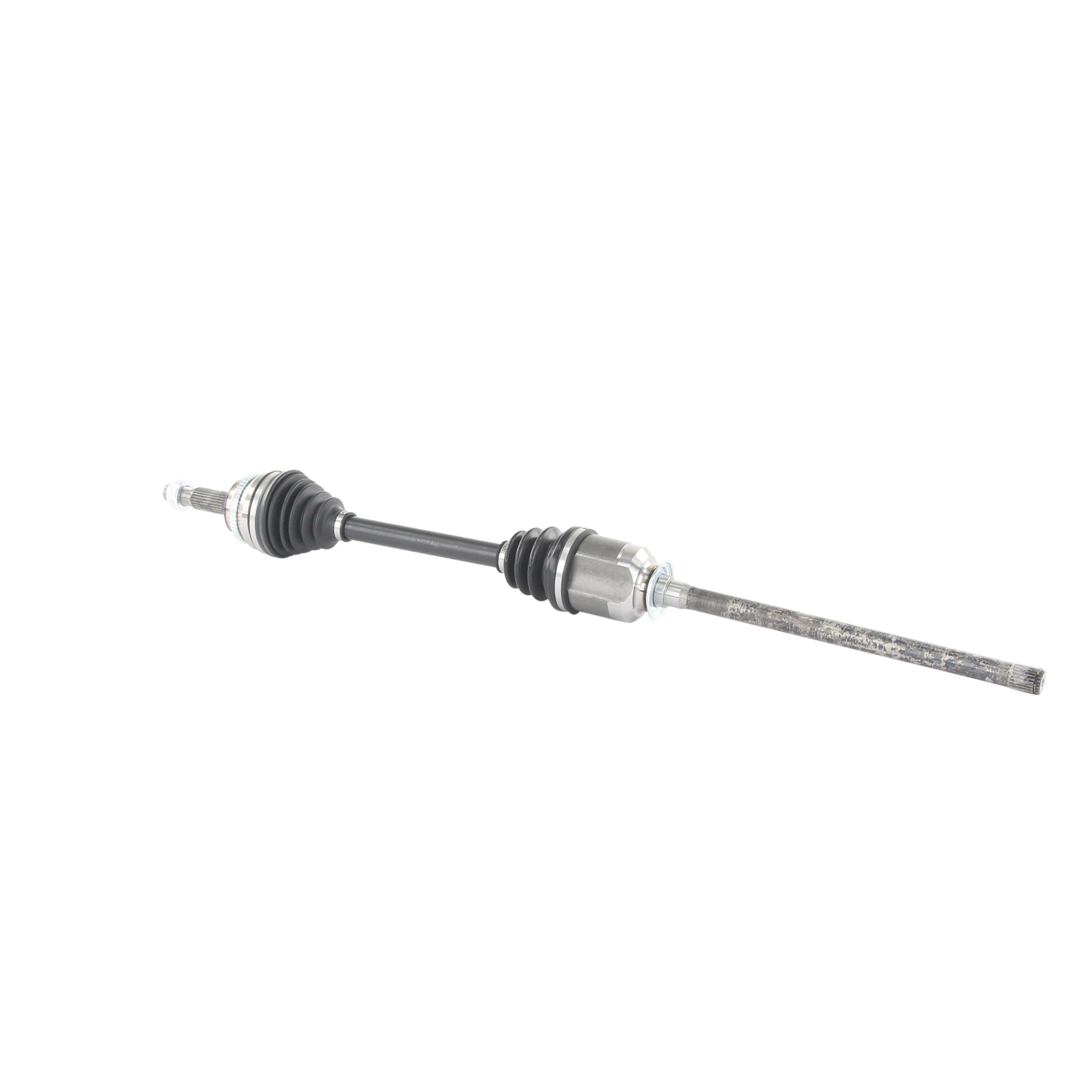

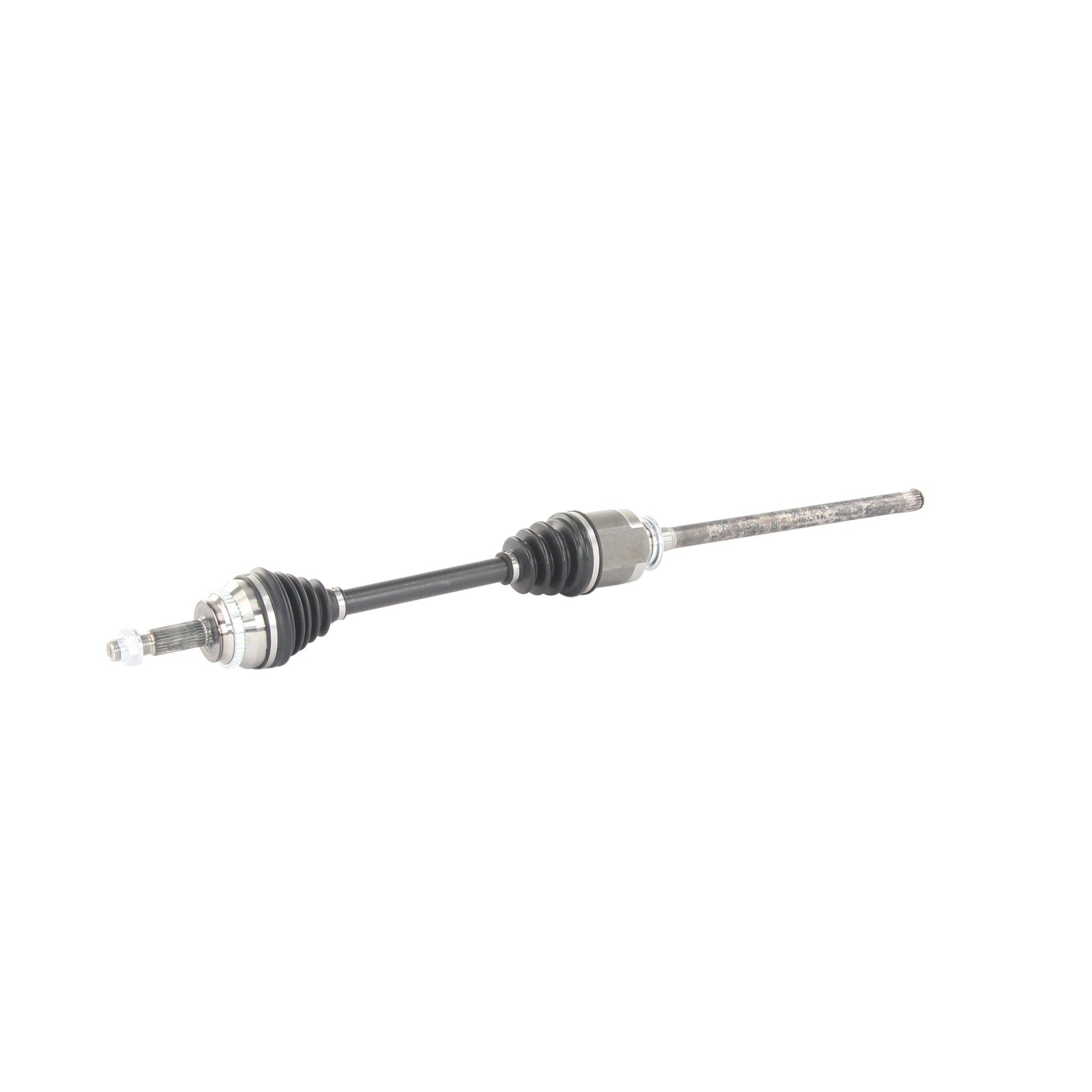

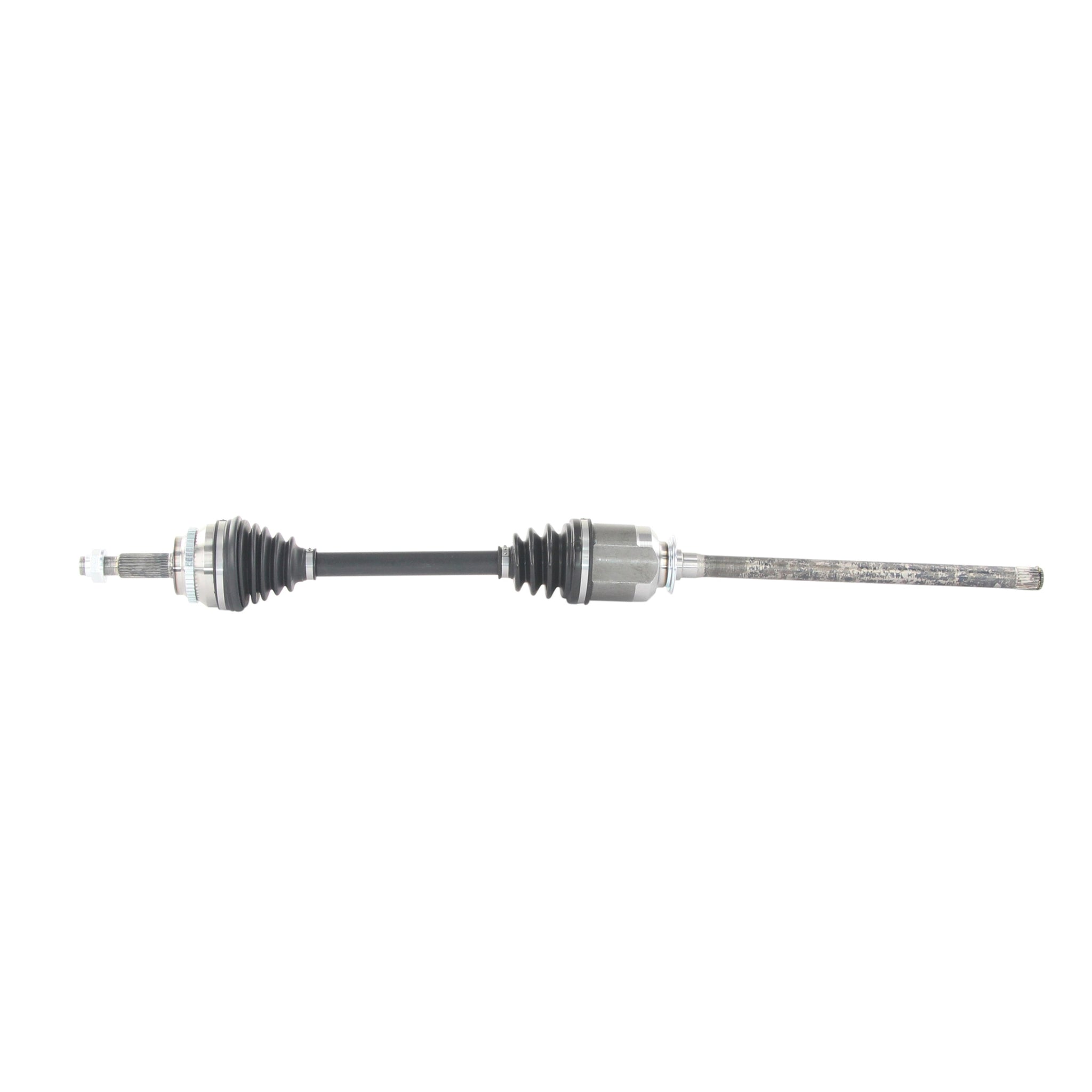

CV Axle Shaft

TrakMotive
TO-8157
$126.00 CAD
$126.00

CV Axle Shaft
CV Axle Shaft
CV Axle Shaft
Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company
Read More
Read Less
Inboard Joint Type
Male
Number Of Inboard Splines
23
Number Of Outboard Splines
26
Axle Nut Hex Size (in)
1.25
Axle Nut Length (mm)
35
Inboard Joint Boot Material
Neoprene
Inboard Shaft Connection Style
Male
Number Of Bolt Holes
0
Number Of Inboard Joint Bolt Holes
0
Number Of Outboard Joint Bolt Holes
0
Outboard Joint Boot Material
Neoprene
ABS Ring Tooth Count
48
ABS Ring Type
Toothed
Axle Nut Height (in)
.8
Grade Type
Premium
Axle Nut Hex Size (mm)
32
Axle Nut Socket Size
32
Number Of Inboard Shaft Bolts
0
Outboard Joint Type
Conventional
Axle Nut Thread Size
M22x1.5
Outboard Shaft Connection Style
Conventional
Overall Compressed Length (in)
39.02
Axle Nut Head Type
Hex
Axle Nut Locking Type
Stake
California Proposition 65 Required
N
ABS Tone Ring Included
Yes
Axle Nut Height (mm)
20
Axle Nut Included
Yes
Axle Nut Length (in)
1.33
Number Of Outboard Shaft Bolts
0
Overall Compressed Length (mm)
991
Customer satisfaction is our number 1 priority. If there is any questions that the FAQ cannot answer please contact us via Live Chat, 1-866-461-2787 or Email Us Here always guarantee the fitment of all our auto parts, tires & wheels. Our catalog is maintained daily to ensure you get the right auto parts, tires and wheels the first time!

Please review the available inventory for a basic idea of when the order will ship. The order cutoff for same-day shipping is 12 Noon. Any orders placed after will ship the next day.

Shipping is mostly free. However, in some rare circumstances, we reserve the right to charge additional freight or cancel the order. This is due to rural areas and/or oversized products

Review the complete freight policy by clicking here

Many times we can still source products. However, it may come with extra freight or fees. Simply contact us via live chat or our Contact Us page here.


Our team will be happy to help!

Our team is very accurate in our picking process. We follow multiple verifications to ensure the right part that was ordered is shipped.

Yes, we do. We have a year, make and model verification. Now with the application, there are sometimes some important notes to read about fitments. For 100% confirmation contact us

Absolutely! You can pick up your Auto Parts, Tires, and Wheels at our Ottawa Location. In order to do that please select the pickup in-store option at the checkout. Our team will reach out to you when your parts are ready for pickup. Normally a day turnaround on all available products.

If you want a more precise pickup time, We are easily reached by Live Chat, 1-866-461-2787 or by Email

Our default price is in Canadian dollars

All of our orders can be canceled prior to shipping. Special orders cannot be canceled once we have confirmed the lead times with our clients. All tire and wheel packages cannot be canceled once mounted & balanced. We do ship out pretty quickly. In order to cancel your order please contact us immediately to cancel. The easiest way is to reply to your order confirmation.

Return freight will be charged for the return

Special order items might be refused for return

Warranties vary by manufacturer. Please contact us for confirmation of warranty on parts

Brand Label Part Number
EMPI 80-6260
Advance Auto Parts NCV69592
USA Industries 7097509
TrakMotive MX-19750S
ODM TO-8-8832A
ProTech TO10530
IMC 40751005
CARDONE Reman 60-5242
Drive Tech America TO-9750A
Diversified Shafts Solutions 530N
Heri Automotive 90650
Mevotech CV9048
GSP NCV69180
GSP NCV69592
American Remanufactured 40-19750S
OEM Part Number 4341042060
OEM Part Number 4341042070
TrakMotive TO-8157
CARDONE Reman 60-5243
CARDONE Reman 66-5243
USA Industries AX-9750
Auto Plus 329157
IMC 40751007
Car Components Technologies CCT 6872
USA Industries AX-97509
